ST-200 Non-optical (Tubular) Cryostat

The ST-200 series are cryostats with tubular tails suitable for resistivity measurements or experimental configurations where square tails are undesirable.

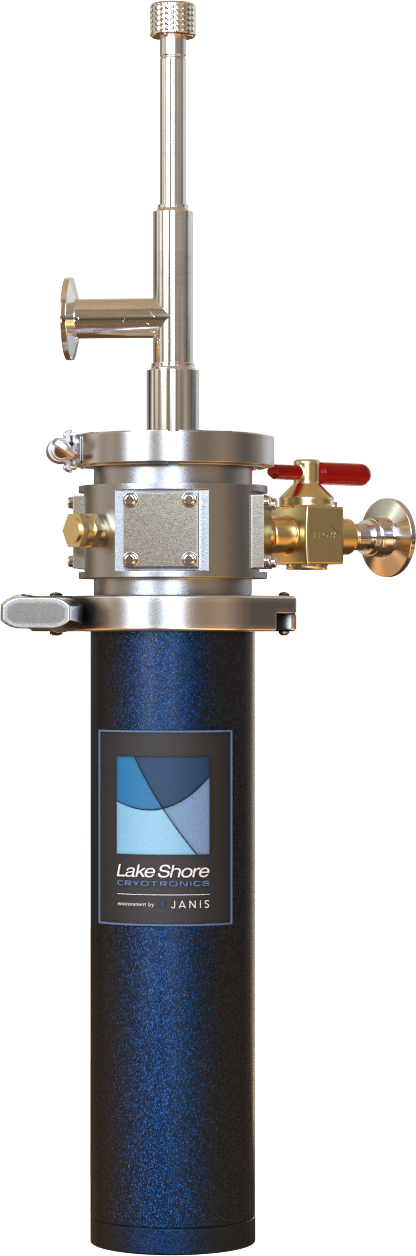

ST-200 tubular non-optical supertran continuous flow cryostat

Designed for non-optical experiments, the Janis Research ST-200 includes the following components:

  • Tubular vacuum shroud
  • Tubular radiation shield
  • Blank sample holder
  • One (1) 10-pin electrical feedthrough
  • Three (3) blank feedthrough ports
  • Temperature sensor
  • 6 ft superinsulated cryogen transfer line
  • Control heater
  • System test

Typical applications:

  • High Tc
  • Resistivity
  • Hall studies
  • Magneto resistivity
  • NMR spectroscopy
  • Diffractions:
    • Gamma ray
    • Neutron (please see other configurations)
    • X-ray

Also available: ST-200-NMR cryostat for NMR spectroscopy

The ST-200-NMR standard configuration

ST-200-NMR tubular non-optical supertran continuous flow cryostat

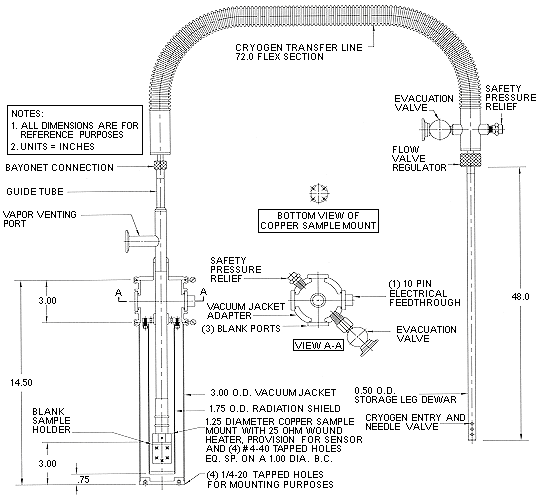

This drawing is an application-specific variation of the tubular SuperTran ST-200 cryostat. This very specialized design includes a thermal anchor above the radiation shield for mounting electronics and a number of rotary and BNC electrical feedthroughs for access to the sample area.

Janis — a Lake Shore Company
ST-200 neutron scattering

ST-200/ST-200-NMR Specifications

Temperature range<2 to 325 K (500 K, >700 K optional)
Initial cooldown time15 min
Nominal temperature stability (with controller)50 mK or less
OrientationAny position (with increased helium consumption)
System weight (without transfer line)10 lb (4.6 kg)
Cryogen consumption on cooldown0.4 L LHe (325 to 4.2 K)
0.1 L LN2 (325 to 77 K)
Nominal cryogen consumption rate0.6 L/h LHe (5 K)
0.1 L/h LN2 (100 K)
Note:Specifications do not include optical or experimental heat loads and assume vertical orientation.
Specifications may change depending on the length of the transfer line flexible section.

Other configurations

Other tubular configurations:

  • High temperature (500 K), (700 K)
  • Large diameter sample space
  • Thin wall aluminum vacuum shroud

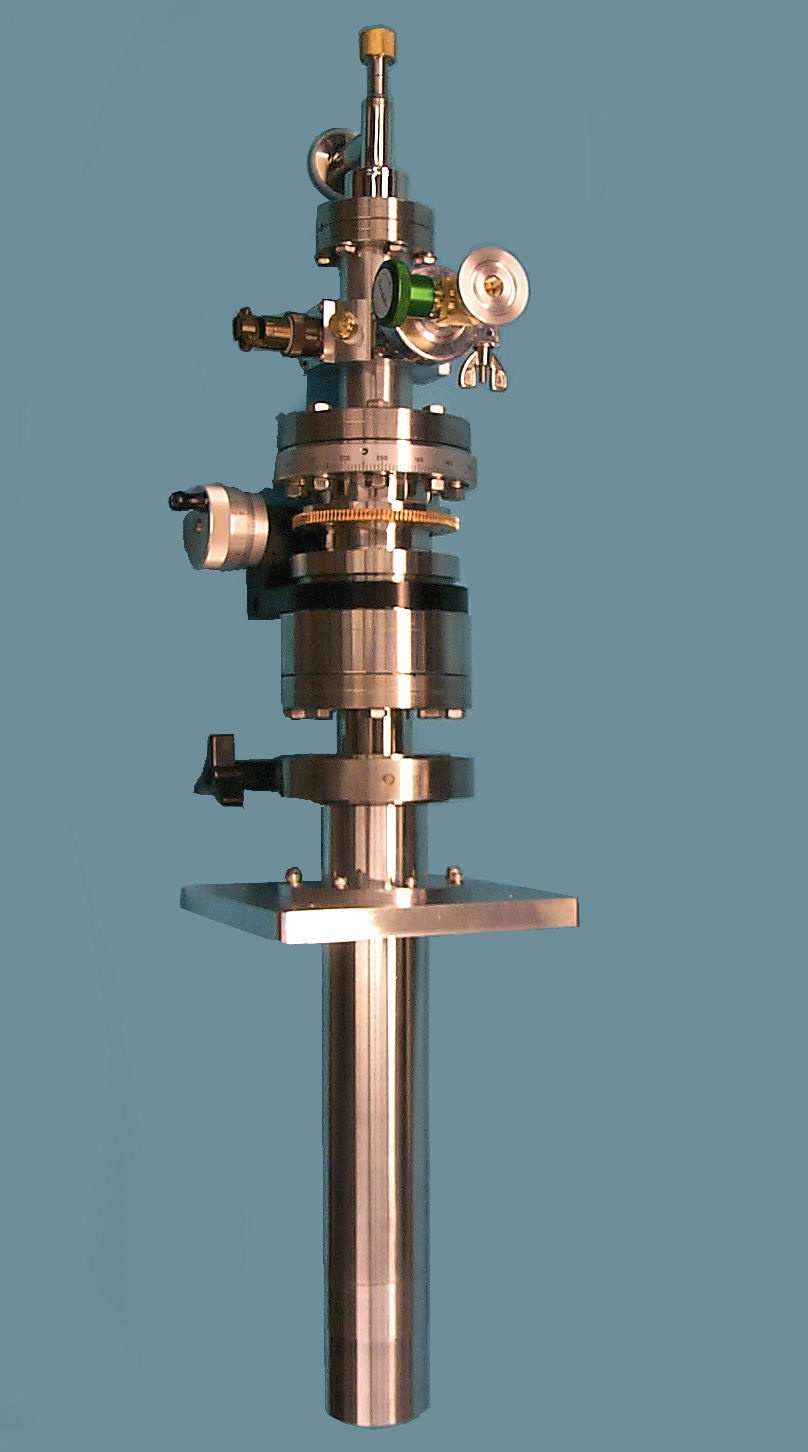

Continuous flow SuperTran cryostat for neutron scattering

Continuous Flow SuperTran Cryostat for Neutron Scattering
