MeasureReady™ MCS-EMP

Modular characterization systems

The MCS-EMP is discontinued. Please consider the MagRS instead.

MCS Series modular characterization systems

Research platforms that quickly adapt to a wide range of material characterization applications, now and into the future.

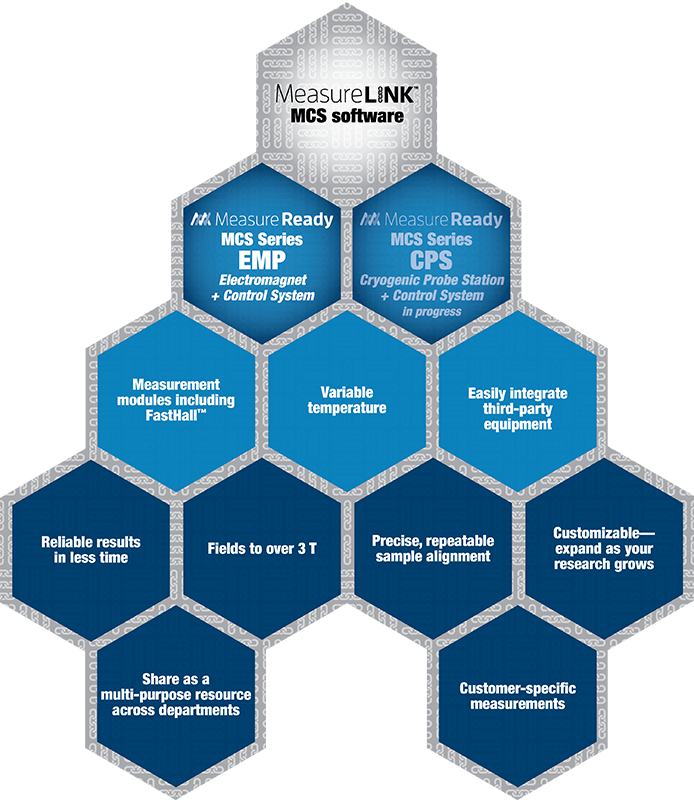

MCS-EMP electromagnet platform features

Key features

  • Variable magnetic fields to over 3 T
  • Low-noise 4-quadrant power supply
  • Integrated teslameter for closed-loop field control
  • MeasureLINK™-MCS control software license and script library

Measurement options

  • Fully-integrated measurement modules, e.g., Hall effect
  • Measurement instrumentation
  • Variable temperature
  • Sample holders
  • Ferromagnetic resonance (FMR)*

Typical applications

  • Electronic/electro-transport measurements
  • Magnetic/magneto-transport measurements
  • Specialized, customer-built measurements

*CPW, Helmholtz coils, cables, and FMR instrument from NanOsc Instruments AB required

MCS-EMP more science in less time

MCS modular characterization system
EMP electromagnet platform

The multi-purpose MCS-EMP electromagnet platform provides all of the essential components required for automated, variable field experiments. Each MCS-EMP builds on a 4-inch or 7-inch electromagnet with pole caps, magnet base, and pedestal. Magnets feature ExactGAP™ precision-settable sample gaps. 2-inch pole caps are standard on the 4-inch MCS‑EMP, and convertible 4-inch/2-inch caps are standard on the 7-inch MCS-EMP. Optical access is optional.

Included with each MCS-EMP:

  • 4 in or 7 in electromagnet
  • Electromagnet system controller (ESC):
  • High-reliability linear magnet power supply (643 or 648)
  • F71 multi-axis teslameter and single-axis field-monitoring probe
  • PC with installed MeasureLINK-MCS control software
  • Equipment console
  •
  • MCS-EMP choices:
    • GlideLOCK option mount only
    • Variable temperature control with GlideLOCK mount
    • Optical bore
