7400 Series VSM

7400 Series VSM

The 7400 Series VSM has been discontinued. Please consider the 8600 Series VSM as an alternative.

Features of the 7400 Series

  • 1 × 10-7 emu noise floor at 10 s/pt
  • 7.5 × 10-7 emu noise floor at 0.1 s/pt
  • High stability ±0.05% per day
  • Excellent reproducibility
  • Fields to >3 T
  • Widest available temperature range—4.2 K to 1,273 K
  • Vector, magnetoresistance, and autorotation options
Request the new magnetocaloric effect software for use with Lake Shore VSMs

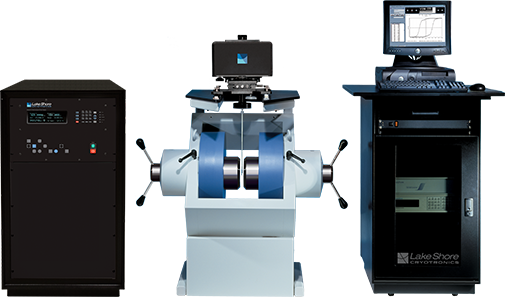

Backed and supported by over 40 years of expertise in measurement technologies, Lake Shore’s fully integrated vibrating sample magnetometers (VSM) are used to characterize the DC magnetic properties of materials as a function of magnetic field, temperature, and time. Available in three different variable gap electromagnet configurations providing fields up to 3.1 T, Lake Shore VSM systems are the most sensitive electromagnet-based VSMs commercially available and feature the broadest temperature range capability—4.2 K to 1,273 K (-269 °C to 1000 °C). These systems measure a wide range of sample types, making them ideal tools for the most demanding materials research applications and quality control of magnetic materials. An assortment of options, including low temperature cryostats, a high temperature oven, a single stage variable temperature assembly, vector coils, autorotation, and an MR probe expand the functionality of Lake Shore VSM systems.

New materials push the limits of electromagnet-based VSM systems. Lake Shore combines high sensitivity, precision electronics, flexible software, and variable magnetic field and temperature into the most advanced electromagnet-based VSM. The high level of technical support and service we provide exemplifies our commitment to the research community and industry.

How a VSM works (0:58)

7400 Series options
