8400 Series features

  • Ideal for variable temperature measurement and mobilities from 1 to 106 cm2/V ‍s
  • Optional AC field extends mobility measurement range down to 10-3 cm2/V ‍s
  • Maximum DC fields to 1.67 T (8404) and 2.25 T (8407)
  • Optional AC fields to 1.18 T (8404) and 1.31 T (8407)
  • Standard resistance range of 0.5 mΩ to 10 MΩ
  • High resistance option widens range to 200 GΩ
  • Low resistance option significantly reduces resistance noise floor
  • Temperatures from 15 K to 1273 K
  • Also available as an option for the CRX-VF cryogenic probe station
  Pole cap (in)Air gap (in)DC (T)AC RMS (T)
Model 8404At room temperature2 (standard)11.671.18
4 (optional)11.350.95
With variable temperature option2 (standard)20.890.63
4 (optional)20.880.62
Model 8407At room temperature4 (standard)12.101.20
2 (optional)12.251.31
With variable temperature option*4 (standard)21.450.69
2 in pole caps not recommended for use with variable temperature in the 8407

2 in pole caps not recommended for use with variable temperature in the 8407

*Field specification assumes the high-uniformity option is used with variable temperature to get a 2:1 ratio of pole cap face to air gap, which is preferred for operation at large gaps. Specifications are subject to change.

You might be interested in the MeasureReady™ M91 FastHall™ measurement controller

Featuring patented* FastHall technology, the M91 fundamentally changes Hall effect characterization by eliminating applied magnetic field polarity switching. This results in faster, more accurate measurements, especially with high-field superconducting magnets or low-mobility materials.

Learn more...

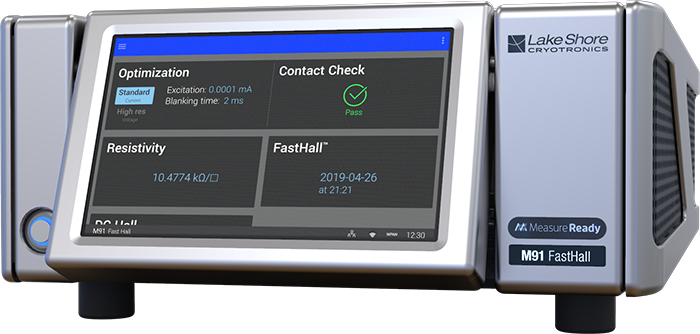

M91 FastHall controller

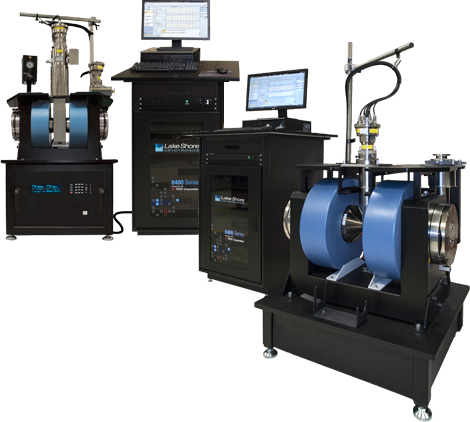

The Lake Shore 8400 Series can be used with both DC and AC field Hall measurement methodologies to facilitate the broadest range of research applications. The system includes fully integrated instrumentation, a magnet and power supply, plus software that dramatically helps you increase your research productivity and provides results that you can trust.

When used with the AC field measurement option, the system is ideal for use with the emerging class of materials that typically have mobilities below 1 cm2/V ‍s—the types of materials with electronic properties that can be difficult or impossible to measure with traditional DC field Hall methods. These include many contemporary semiconductor and electronic materials, such as photovoltaic (solar cell) and thermoelectric materials, new display technologies, and organic electronics.

The standard system is capable of DC field measurements and has a resistance range from 0.5 mΩ to 10 MΩ. Measure Hall voltage, Hall coefficient, Hall mobility, and resistivity. With options added, the system allows you to measure down to 0.5 µΩ and as high as 200 GΩ in DC fields. You can also determine carrier density and carrier mobility versus temperature.
