CPX-VF cryogenic probe station

CPX-VF cryogenic probe station

CPX-VF superconducting magnet-based vertical-field probe station features

  • Standard probing plus out-of-plane vertical field superconducting magnetic measurements
  • Multiple radiation shields for best low-temperature performance
  • Minimize sample condensation during cool-down
  • True 90° probing
  • Customizable for Hall measurements
  • Customizable up to 3 T with specialized probes

Optional configurations

Click here for detailed option descriptions

Load-lock option   Load lock (PS-LL-CPX)
High vacuum option   High vacuum (PS-HV-CPX)
Low temperature option   Low temperature (PS-LT-CPX)
Vibration isolation option   Vibration isolation (PS-PVIS)
PSoption_Z160   Zoom 125 microscope (PS-Z12P5)
Read our tech note: 'A New Approach to Low-Level Measurements of  Nanostructures'
CPX-VF vacuum chamber and radiation shields

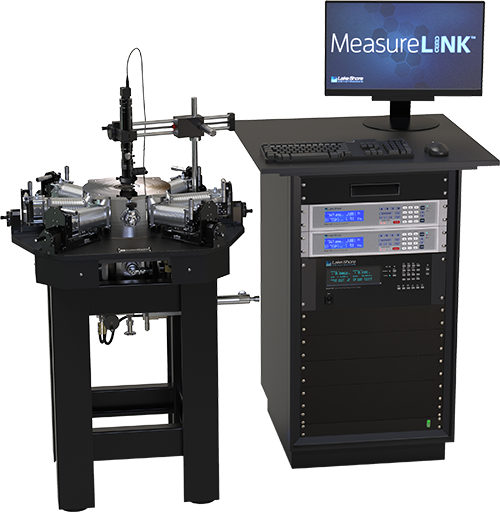

The Lake Shore CPX-VF probe station enhances the standard probe station capabilities with the addition of a ±2.5 T vertical field superconducting magnet. It can do all the standard C-V, I-V, microwave, and electro-optical probing of the CPX, plus out-of-plane vertical field superconducting magnetic measurements. Researchers can use it to perform Hall effect measurements and test magneto-transport parameters. The CPX-VF is one of Lake Shore’s premium probe stations for combining microwave measurements with magnetic field.

The CPX-VF is designed to enable true 90° wafer probing on wafers up to 51 mm (2 in) in diameter. The sample can be maintained at elevated temperature during cooldown reducing the potential for condensation, a critical requirement for measuring organic materials. The continuous refrigeration station uses liquid helium and can be operated with liquid nitrogen; however, the superconducting magnet requires liquid helium to operate. The CPX-VF operates over a temperature range of 4.2 K to 420 K with the option to extend the base temperature to 2 K.
