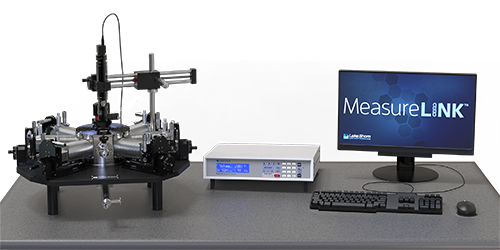

TTPX cryogenic probe station

TTPX tabletop cryogenic probe station

TTPX tabletop probe station features

  • Entry-level system
  • Compact tabletop design
  • Affordable
  • Rapid cooldown and warmup
  • Backside optical access

Optional configurations

Click here for detailed option descriptions

Optical access option   Optical access (FT-OPTIC)
Low temperature option   Low temperature (PS-LT-CPX)
High temperature option   High temperature (PS-HTSTAGE)
Vibration isolation option   Vibration isolation (PS-PVIS)
Stand option   Stand (PS-STAND)
PSoption_Z160   Zoom 125 microscope (PS-Z12P5)


Click here for description

Ring magnet sample holder kit   Ring magnet kit (PS-RING-MAG-KIT)
Read our tech note: 'A New Approach to Low-Level Measurements of  Nanostructures'
Download the probe station catalog
TTPX vacuum chamber and radiation shields

The TTPX probe station is an affordable, entry-level probe station capable of making a wide variety of non-destructive, standard electrical device measurements. The compact tabletop design is perfect for academic and laboratory research settings. The TTPX provides efficient cryogenic temperature operation and control with a continuous refrigeration system using either liquid helium or liquid nitrogen.

The TTPX operates over a temperature range of 4.2 K to 475 K with options to extend as low as 3.2 K or to a higher range of 20 K to 675 K. This model accommodates full and partial wafers up to 51 mm (2 in) in diameter. A wide selection of probes, cables, sample holders, and options makes it possible to meet specific measurement applications.

The TTPX is Lake Shore’s premium design for electro-optical materials characterization with the backside optical access option and compatible optical sample holders. I-V, C-V, and microwave measurements are standard options on the TTPX. Its versatility and affordability make the TTPX the tool of choice for many researchers around the world.

Own a TTPX? Upgrade to cryogen-free!


Sample holders

Probing configurations

Vision system

Sample temperature accuracy is key

Includes PC with MeasureLINK software
