CRX-EM-HF cryogenic probe station

CRX-EM-HF cryogen-free probe station

CRX-EM-HF cryogen-free horizontal-field electromagnet probe station features

  • Cryogen-free operation
  • Allows unsupervised cooldown
  • Standard probing plus in-plane horizontal field electromagnetic measurements
  • Generate full field without cooldown
  • Probes configured at 30° angles to accommodate electromagnet
  • Optional 360° rotation

Optional configurations

Click here for detailed option descriptions

360° rotation option   360° sample rotation (PS-360-EMPX)
PSoption_Z160   Zoom 125 microscope (PS-Z12P5)
Read our tech note: 'A New Approach to Low-Level Measurements of  Nanostructures'

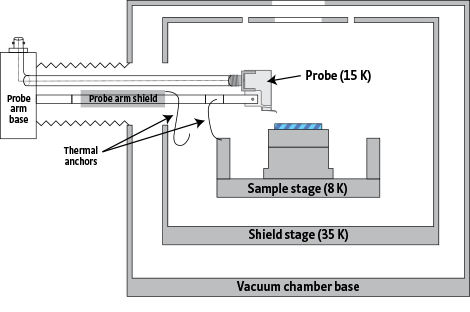

CRX-EM-HF vacuum chamber and radiation shields

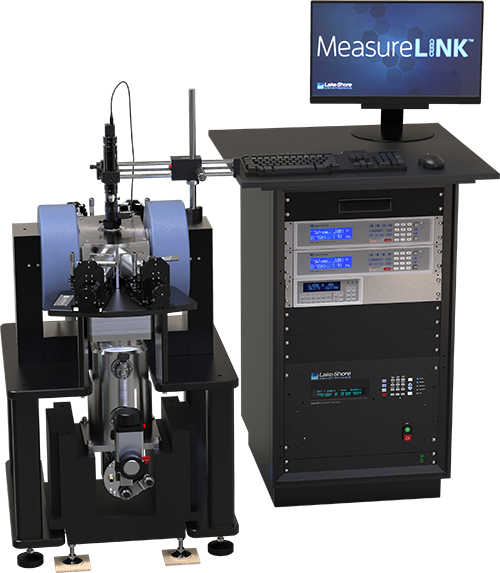

The Lake Shore CRX-EM-HF probe station is a cryogen-free closed-cycle refrigerant probe station with a ±0.6 T horizontal, in-plane electromagnet. All standard C-V, I-V, microwave, and electro-optical probing, plus in-plane horizontal field electromagnetic measurements can be performed on this versatile probe station. Researchers can use the CRX-EM-HF for testing magneto-transport parameters. It is Lake Shore’s premier cryogen-free probe station for vector-dependent magneto-transport measurements. To maximize magnetic field at the sample, the CRX-EM-HF has its probes configured at 30° angles for probing wafers up to 25 mm (1 in) in diameter.

Using a self-contained closed-cycle refrigerator (CCR), the CRX-EM-HF cools down to cryogenic temperatures unassisted, eliminating the need for monitoring by the researcher. A 360° sample stage rotation option allows measurement of angular-dependent and anisotropic magneto-transport properties.



Sample holders

Probing configurations

Vision system

Sample temperature accuracy is key

Includes PC with MeasureLINK software

Download the probe station catalog
