Rox 102B-CB

new-102b-cb

The RX-102B-CB is discontinued. Please consider the RX-102B-RS instead.

RX-102B-CB features

  • Useful down to 10 mK; calibrations down to 20 mK available
  • Monotonic from 10 mK to 300 K

Please note: there is a new version of this sensor — the RX-102B-RS

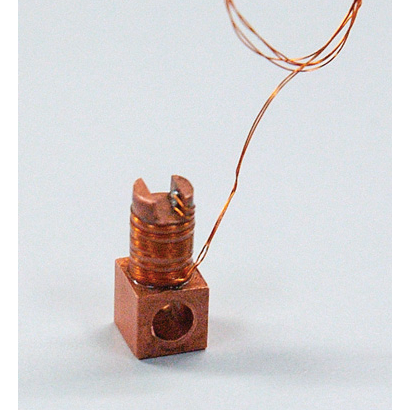

The RX-102B-CB (1000 Ω at room temperature) is useful down to 10 mK (calibrations available down to 20 mK) and monotonic from 10 mK to 300 K. The unique package design maximizes thermal connection and minimizes heat capacity at ultra-low temperatures. The RX-102B-CB is not interchangeable with a standard curve and is not recommended for use in magnetic fields.

Typical resistance Ω

Rox 102B-CB typical resistance

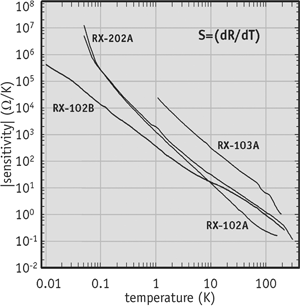

Typical sensitivity | Ω/mK |

Rox 102B-CB typical sensitivity

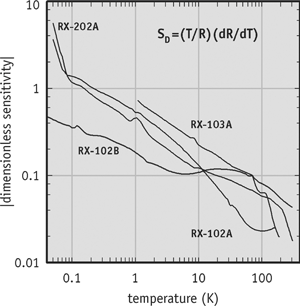

Typical dimensionless sensitivity | Sd |

Rox 102B-CB typical dimensionless sensitivity
