EMPX-H2 cryogenic probe station

EMPX-H2 cryogenic probe station

EMPX-H2 electromagnet-based horizontal-field probe station features

  • Standard probing plus in-plane horizontal field electromagnetic measurements
  • Generate full field without cryogen or cooldown
  • Probes configured at 30° angles to accommodate electromagnet

Optional configurations

Click here for detailed option descriptions

360° rotation option   360° sample rotation (PS-360-EMPX)
Low temperature option   Low temperature (PS-LT-CPX)
Read our tech note: 'A New Approach to Low-Level Measurements of  Nanostructures'
EMPX-HF vacuum chamber and radiation shields

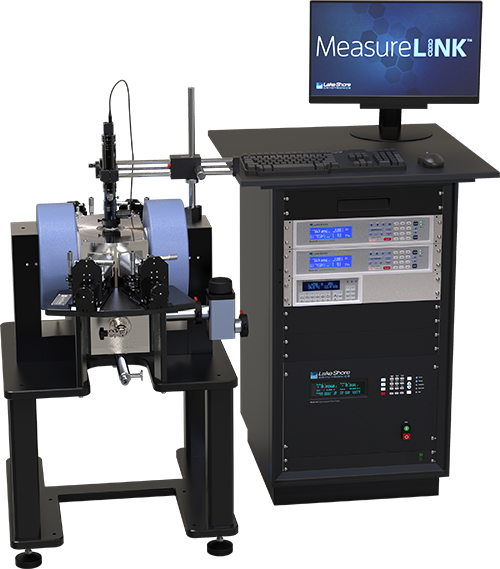

The Lake Shore EMPX-H2 probe station enhances standard probe station capabilities with the addition of a ±0.6 T horizontal field electromagnet. All standard C-V, I-V, microwave, and electro-optical probing, plus in-plane horizontal field electromagnetic measurements can be performed on this versatile station. Researchers can use it for testing magneto-transport parameters. The EMPX‑H2 is Lake Shore’s premier probe station for vector-dependent magneto-transport measurements.

To maximize magnetic field at the sample, the EMPX-H2 probes are configured at 30° angles for probing wafers up to 25 mm (1 in) in diameter. A 360° sample stage rotation option allows measurement of angular-dependent and anisotropic magneto-transport properties. The EMPX-H2 operates over a temperature range of 4.5 K to 420 K, with options to extend the base temperature to 3.2 K. The continuous refrigeration EMPX-H2 can be operated with liquid helium or liquid nitrogen for cooling.

Own an EMPX? Upgrade to cryogen-free!



Sample holders

Probing configurations

Vision system

Sample temperature accuracy is key

Includes PC with MeasureLINK software
