RX-102B-CB specifications
Standard curve RX-102B-CB does not follow a standard curve
Recommended excitation1 20 µV (0.05 K to 0.1 K); 63 µV (0.1 K to 1.2 K); 10 mV or less for T > 1 K
Dissipation at recommended excitation 7.5 × 10–8 W at 4.2 K
Thermal response time 0.5 s at 4.2 K, 2.5 s at 77 K
Radiation effects Recommended — See Appendix B for more information
Magnetic field RX-102B-CB is not recommended for use in magnetic field
Reproducibility2 ±15 mK
1Recommended excitation for T < 1 K based on Lake Shore calibration procedures using an AC resistance bridge—for more information, refer to Appendix D and Appendix E
2Short-term reproducibility data is obtained by subjecting sensor to repeated thermal shocks from 305 K to 4.2 K
Range of use
| | Minimum limit | Maximum limit |
| RX-102B-CB | 0.01 K3 | 40 K |
3Calibrations down to 20 mK available
Calibrated accuracy4
| | RX-102B-CB |
| 20 mK | ±2 mK |
| 50 mK | ±4 mK |
| 1.4 K | ±16 mK |
| 4.2 K | ±16 mK |
| 10 K | ±30 mK |
4[(Calibration uncertainty)2 + (reproducibility)2]0.5 for more information, see Appendices B, D, and E
Long-term stability
Typical magnetic field-dependent temperature errors ΔT/T (%) at B (magnetic induction)
| RX-102B-CB |
| T (K) | 2.5 T | 8 T | 14 T | 19 T |
| 2 | 3.29 | 13.82 | 22.53 | 27.95 |
| 3 | 3.96 | 14.68 | 23.12 | 29.12 |
| 4 | 3.53 | 13.92 | 22.57 | 28.20 |
| 8 | 1.53 | 7.53 | 13.50 | 17.86 |
| 16 | 0.27 | 2.14 | 4.66 | 6.58 |
| 23 | 0.06 | 0.79 | 2.01 | 3.11 |

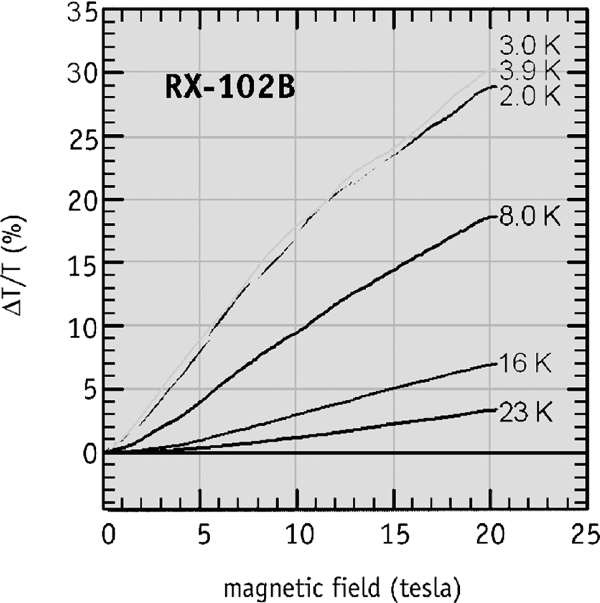

Magnetic field dependence data for sample Rox™ RTDs

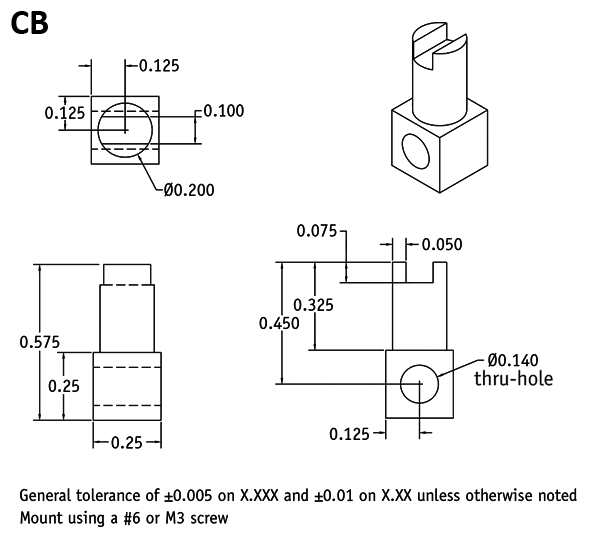

Physical specifications
| | Mass | Lead type | Internal atmosphere | Sensor materials |
| RX-102B-CB | 3.5 g | Two 6 in 36 AWG copper leads with heavy-build polyimide insulation | NA | Thick ruthenium dioxide and bismuth ruthenate films on aluminum dioxide substrate with palladium silver contacts; epoxy attachment to OFHC adapter; copper leads indium soldered to chip and heat sunk to copper adapter using VGE 7031 varnish |
