4 K Cryocoolers — SHI 0.1 W Compressor Unit

The Sumitomo CNA-11C compressor is compatible with the 0.1 W cold head system (Model RDK-101D). It is equipped with casters for ease of transport.

Standard configuration

CNA-11C mechanical drawing

Accessories

Input power cable5 m
Flexible gas line3 m supply and return
Cold head cable5 m

Lake Shore — environment by JANIS

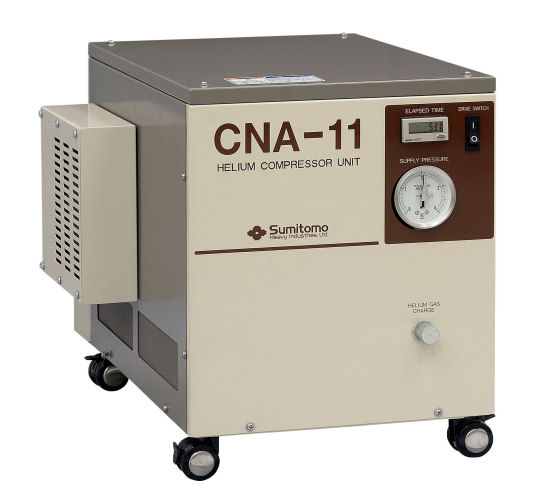

CNA-11 helium compressor

Compressor Unit Model CNA-11C Specifications

CoolingAir
Abient operating temperature4 to 28 °C; 28 to 35 °C (with cooling capacity loss max. 10%)
Electrical powerAC 100 V to 240 V (± 10%, 1-phase)
Power requirementMinimumRecommend
1.8 kVA2.5 kVA
Electrical power consumptionSteadyMaximum
50 Hz     1.2 kW1.3 kW
60 Hz     1.3 kW1.5 kW
Site conditionIndoor
WeightApproximately 75 kg
Dimension390 D × 450 L × 610 H* (mm) *includes transformer unit
Maintenance interval30,000 h
Input power cable5 m

Specifications are subject to change without notice.
