10 K Cryocoolers — Sample in Vacuum Systems

CCS-1XX, CCS-2XX, CCS-3XX, and CCS-4XX Series

Janis Research offers 10 K closed-cycle refrigerator (CCR) systems in a variety of configurations. Standard models include optical, non-optical, compact, subcompact, and rotatable vacuum shroud.

Standard configuration

"XX" indicates the cold head for the system. "00" for SHI cold heads and "50" for CTI cold heads.

  • Optical
    • Standard: CCS-1XX
    • High temperature: CCS-4XX
  • Compact optical
    • Standard: CCS-3XX
    • Subcompact: CCS-3XXS
    • Rotatable: CCS-3XXR
  • Non-optical
    • Standard: CCS-2XX
  • Compact non-optical
    • Standard: CCS-3XXT
    • Subcompact: CCS-3XXST

Features:

  • 10-pin electrical feedthrough, with three spare access ports (all sample in vacuum systems)
  • Evacuation valve and safety pressure relief (all sample in vacuum systems)
  • Four (4) 1.63 in clear view quartz windows (CCS-1XX)
  • Gold-plated OFHC copper sample holder (all sample in vacuum systems)
  • Helium compressor and 10 ft gas lines (all sample in vacuum systems)
  • Optical vacuum shroud and radiation shield (f1.0 optics) (all optical sample in vacuum systems)—OR—non-magnetic stainless steel vacuum shroud and aluminum radiation shield (all non-optical sample in vacuum systems)

Available options:

  • 500 K high-temperature systems (CCS-2XX, CCS-3XX, CCS-3XXS, CCS-3XXR)
  • 800 K high-temperature systems (CCS-400H/204)
  • 7 K base temperature (CCS-100/204N)
  • Additional electrical feedthroughs (BNC, SMA, multipin, and others) (all sample in vacuum systems)
  • Bottom window port (all sample in vacuum systems)
  • Specially modified window block with a larger window as an option (CCS-1XX, CCS-450)
  • Custom designed vacuum jacket, including larger or smaller diameter, rectangular shape or additional window ports (all sample in vacuum systems)
  • Gas introduction ports (all sample in vacuum systems)
  • Matrix isolation configuration (all-optical sample in vacuum systems)
  • Rotatable vacuum jacket (all sample in vacuum systems)
  • IR and other window materials (all optical sample in vacuum systems)
  • Sample holder for DLTS (all sample in vacuum systems)
  • UHV configured, including UHV-compatible thermometry and wiring (CCS-UHV)
  • Air-cooled compressor (all models)
Janis — a Lake Shore Company

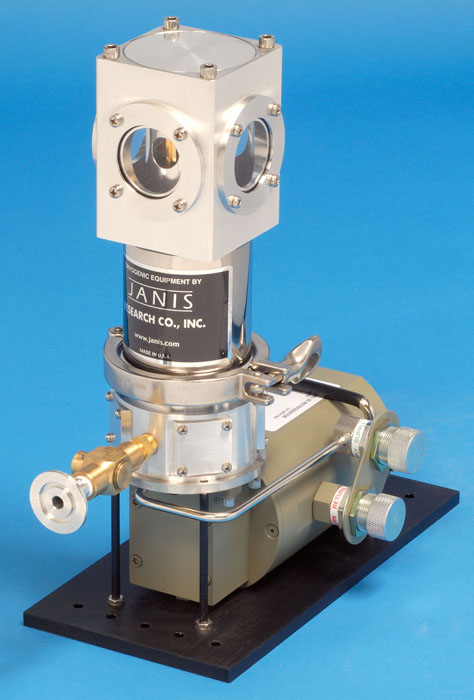

CCS-150 optical 10 K CCR

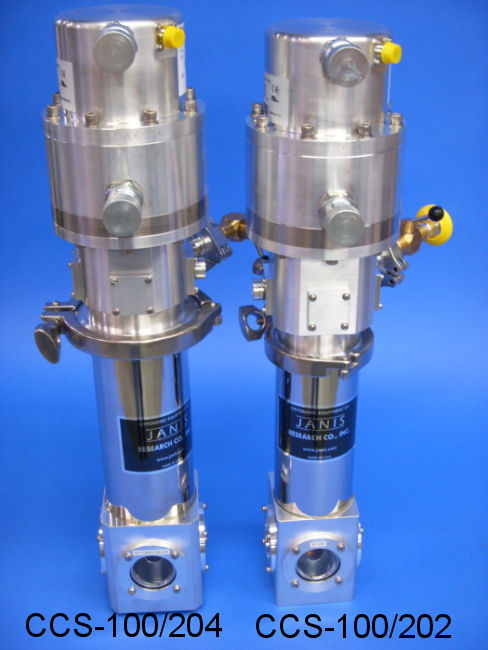

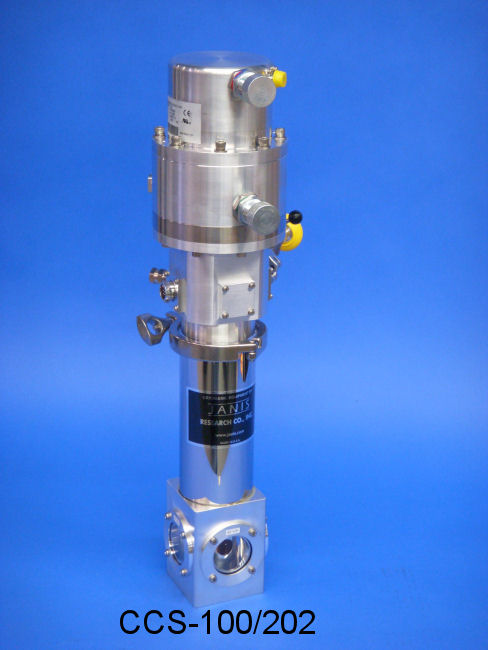

Model CCS-100/202 standard, optical, sample in vacuum 10 K cryocooler with SHI cold head

Janis is pleased to announce that the original APD Cryogenics pneumatically driven, 10 K cryocoolers using Displex™ refrigeration system technology are once again available. These cryocoolers are supplied with either Janis cryostats or as "bare" systems and are provided in the SHI 202 10 K closed cycle system configuration. A complete range of accessories and ancillary equipment is available. CCS-100-202 optical 10 K CCR CCS-100-202  main drawing CCS-100-202 views drawing

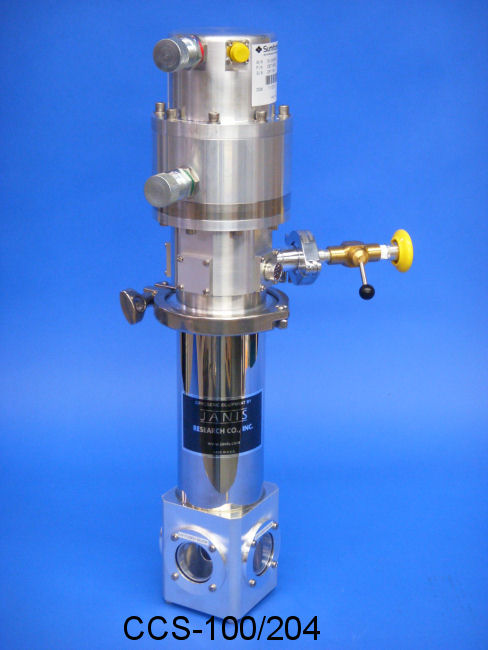

Model CCS-100/204 standard, optical, sample in vacuum 10 K cryocooler with SHI cold head

Janis is pleased to announce that the original APD Cryogenics pneumatically driven, 10 K cryocoolers using Displex™ refrigeration system technology are once again available. These cryocoolers are supplied with either Janis cryostats or as "bare" systems and are provided in the SHI 204 10 K closed cycle system configuration. A complete range of accessories and ancillary equipment is available. CCS-100-202 CCS-100-204 10 K Cryocoolers CCS-100-204 10 K Cryocooler CCS-100-204 main drawing CCS-100-204 views drawing

Model CCS-150 standard, optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-150 is among the most versatile systems available for laboratory sample cooling. The system is equipped with f 1.0 optics and includes provisions for a wide variety of electrical connectors. Tapped mounting holes on the vacuum jacket and a sturdy refrigerator baseplate offer convenient mounting in any orientation. The CCS-150 is designed for measurements to 325 K.

The Model CCS-150 optical closed-cycle refrigerator was used in experiments mentioned in the following article, which appeared in APPLIED PHYSICS LETTERS 86, 081104 (2005).

  • Effects of epitaxial lift-off on interface recombination and laser cooling in GaInP/GaAs heterostructures

CCS-150 optical 10 K CCR CCS-150 8200 10 K CCR Compressor CCS-150 main drawing

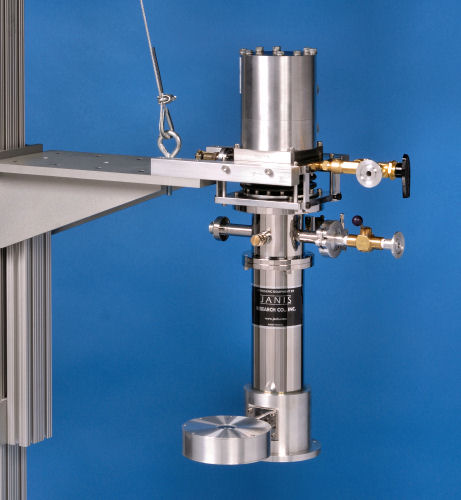

Model CCS-100-XG low vibration, 10 K cryocooler with SHI cold head

The all-new Janis CCS-100-XG cools materials and devices to <10 K, with nanometer-level vibrations. This versatile vibration isolated cryogen-free closed-cycle refrigerator comes in standard, UHV, and microscopy configurations. The microscopy configuration offers a 2 mm working distance. 5 K and 10 K configurations for magnetic and electrical measurements are also available. CCS-100-XG-M Cryogen-Free Low Vibration Microscopy Cryostat

Model CCS-450 standard, optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-450 is among the most versatile systems available for laboratory sample cooling. The system is equipped with f 1.0 optics and includes provisions for a wide variety of electrical connectors. Tapped mounting holes on the vacuum jacket and a sturdy refrigerator baseplate offer convenient mounting in any orientation. The CCS-450 extends the upper temperature limit to 500 K. The CCS-450 includes an exclusive overtemperature protection circuit, which automatically cuts power to the control heater when needed to protect the refrigerator's internal components. CCS-450 10 K CCR drawing CCS-450 10 K CCR views drawing

Model CCS-400ST/204 Sub-10 K magnetooptical cryostat — available for quick delivery

Temperature Range <8 K to 500 K; Optical + non-optical subcompact vacuum shrouds; Designed for use in magnetic environments; Special 8-pin, spring-loaded resistivity sample holder; Fully tested and ready for shipment as-configured, or slight modifications are possible as well; Download the system drawing. Contact Janis for pricing and questions.

Model CCS-350 compact, optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-350 provides all the features of the standard optical systems in a compact configuration. This system offers compact vacuum jackets with optical access and includes provisions for a wide variety of electrical connectors. A sturdy refrigerator baseplate offers convenient mounting in any orientation.

The compact CCS-350 offers the same large 1.5 in diameter sample mount as the standard optical model, but with reduced vacuum jacket size. This design is especially well suited for mounting on optical tables or in spectrometer sample compartments with limited clearance. CCS-350 10 K CCR

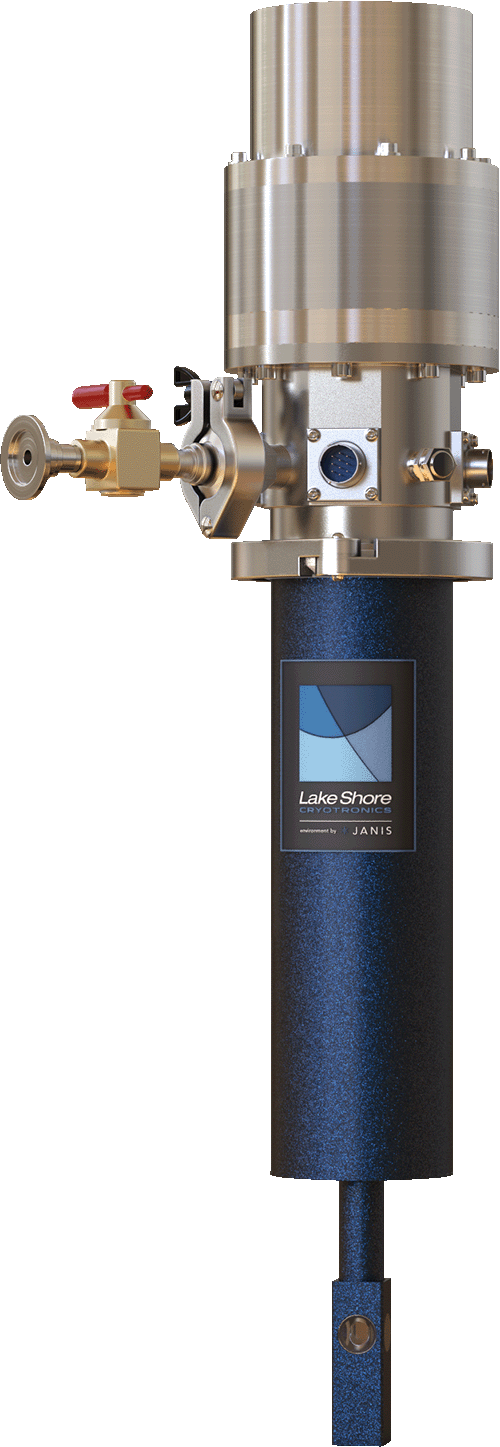

Model CCS-350S sub-compact, optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-350S provides all the features of the standard optical systems in a compact configuration. This system offers sub-compact vacuum jackets with optical access and includes provisions for a wide variety of electrical connectors. Tapped mounting holes on the vacuum jacket (CCS-350S) and a sturdy refrigerator baseplate offer convenient mounting in any orientation.

The subcompact CCS-350S is primarily used for magneto-optical experiments. The exact length of the cold finger can be specified to match almost any commercially available electromagnet. It can be equipped with field independent thermometry for accurate temperature measurements in any magnetic environment. CCS-350S 10 K CCR CCS-350S main drawing

Model CCS-350R compact, optical, sample in vacuum 10 K cryocooler with CTI cold head and rotating vacuum shroud

The Janis CCS-350R provides all the features of the standard optical systems in a compact configuration. This system offers rotatable vacuum jackets with optical access and includes provisions for a wide variety of electrical connectors.

The CCS-350R offers the same large 1.5 in diameter sample mount as the standard optical model, but with reduced vacuum jacket size. It also offers sample rotation through 360 degrees during operation. CCS-350R 10 K CCR

Model CCS-250 non-optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-250 is designed for experiments where optical access to the sample is not needed. This system includes provisions for a wide variety of electrical connectors, and a sturdy refrigerator baseplate offers convenient mounting in any orientation.

The CCS-250 includes a 2 in diameter radiation shield, which permits the installation of large samples. CCS-250 10 K non-optical CCR CCS-250 10 K drawing

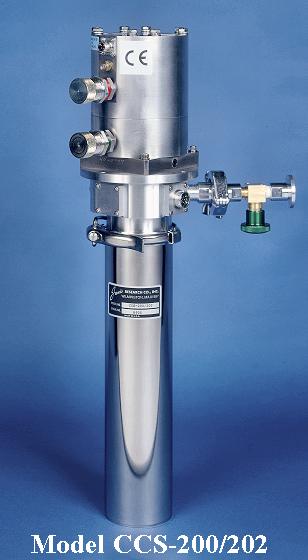

Model CCS-200/202 non-optical, sample in vacuum 10 K cryocooler with SHI cold head

Contact Janis for more information. CCS-200-202 non-optical 10 K CCR

Model CCS-350T compact, non-optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-350T is designed for experiments where optical access to the sample is not needed. This systems includes provisions for a wide variety of electrical connectors, and a sturdy refrigerator baseplate offers convenient mounting in any orientation.

The compact CCS-350T offers the same large 1.5 in diameter sample mounting area as the standard model, but with reduced radiation shield and vacuum jacket diameters. CCS-350T CCS-350T main drawing

Model CCS-350ST sub-compact, non-optical, sample in vacuum 10 K cryocooler with CTI cold head

The Janis CCS-350ST is designed for experiments where optical access to the sample is not needed. This system includes provisions for a wide variety of electrical connectors, and a sturdy refrigerator baseplate offers convenient mounting in any orientation.

The subcompact CCS-350ST is most often used in conjunction with narrow gap electromagnets. The exact length of the cold finger can be specified to match almost any commercially available electromagnet. It can be equipped with field independent thermometry for accurate temperature measurements in any magnetic environment. CCS-350ST 10 K CCR

Download the Sample in Vacuum 10 K Cryocooler Specifications.



Other configurations

Model CCS-150 with large windows

This photo shows a model CCS-150 with (2) 2.63 in diameter clear view windows. CCS-150 Large Windows

Model CCS-150 with optional horizontal mounting stand and special sample holder with electrically isolated pins

This particular stand is bare aluminum. Black anodizing is also available as an option. CCS-150 Horizontal Mounting Stand CCS-150 Special Sample Holder

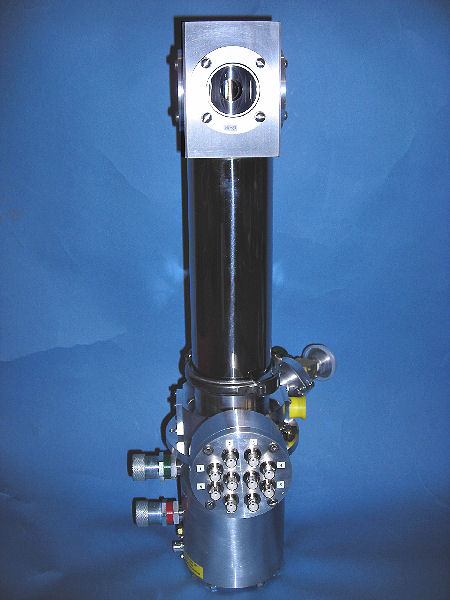

Model CCS-100/202 with special 10-way BNC breakout box

CCS-100-202 special 10-way BNC Breakout Box

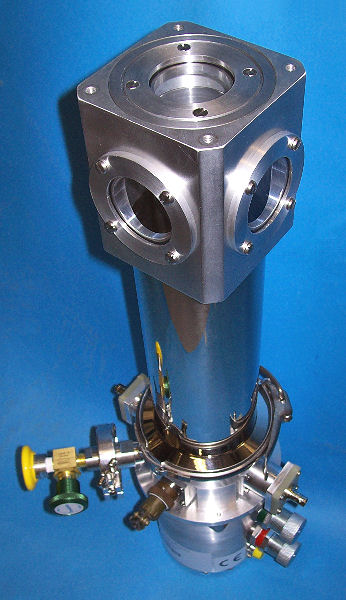

Model CCS-100/204 with top window and special jack-to-jack BNC feedthroughs

CCS-100-204 top window special jack-to-jack BNC feedthroughs

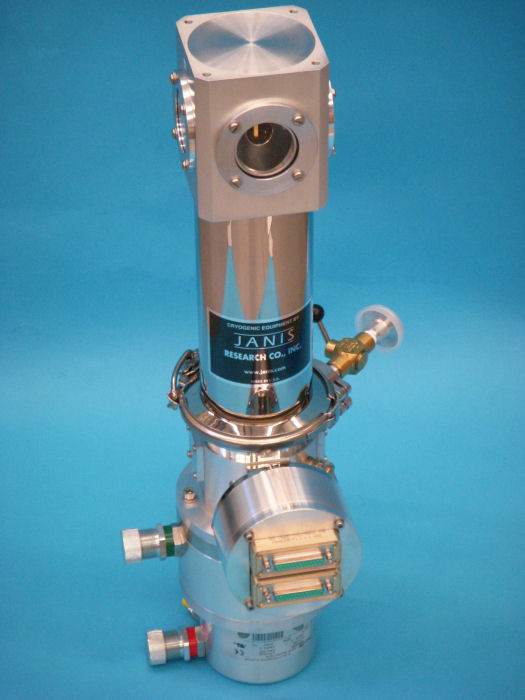

CCS-100/204 with a customer-specified breakout box

The CCS-100/204 shown has a breakout box with two special 25-pin D-sub feedthroughs. The customer had special requirements for these particular break out box feedthroughs. Contact Janis today to discuss your requirements with our sales engineers. CCS-100-204 Breakout Box

CCS-100/204N designed for femtoamp measurements

This special CCS-100/204N with a probe station triaxial chuck specifically was designed for femtoamp measurements. The window block was modified to include a top window and a special radiation shield with a cold top window. CCS-100-204N CCS-100-204N Top  Window

Model CCS-200HT high temperature, non-optical closed-cycle refrigerator

CCS-250HT 10 K CCR

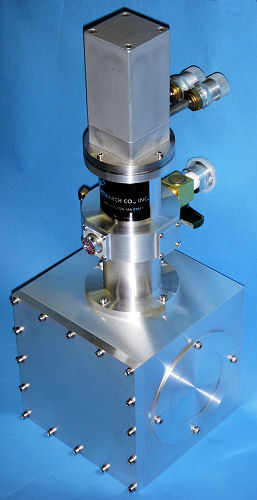

Special CCS-300/AL60 "beryllium filter cryostat" for neutron scattering

This system uses a single-stage cold head and will be used on a neutron beamline. The customer's sample will be a block of beryllium mixed in with some other materials. CCS-300-AL60 Beryllium Filter Cryostat

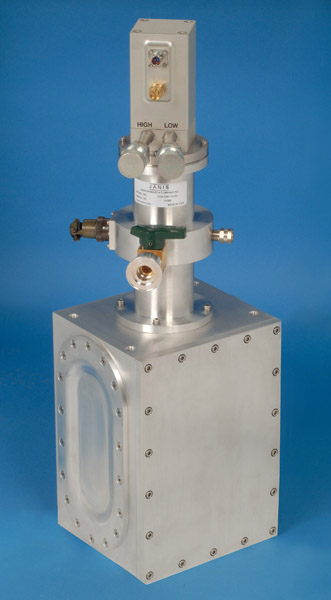

Special CCS-300/AL60 with aluminum vacuum shroud with two o-ring sealed aluminum window blanks

This special CCS-300/AL60 and the beryllium filter cryostat will each cool a large neutron filter made of beryllium and other materials in a neutron beamline. CCS-300-AL60 Special

Special CCS-350R 10 K matrix isolation system

CCS-350R Matrix  Isolation

Model CCS-350SR with handles

CCS-350SR with handles

Special CCS-450ST high temperature, sub-compact, non-optical closed-cycle refrigerator

CCS-450ST

Special CCS-450ST high temperature (500 K), sub-compact, non-optical closed cycle refrigerator for use in an electromagnet

CCS-450ST 10 K CCR

Model CCS-400H/204 high temperature, optical closed-cycle refrigerator

CCS-400H-204 optical high temperature

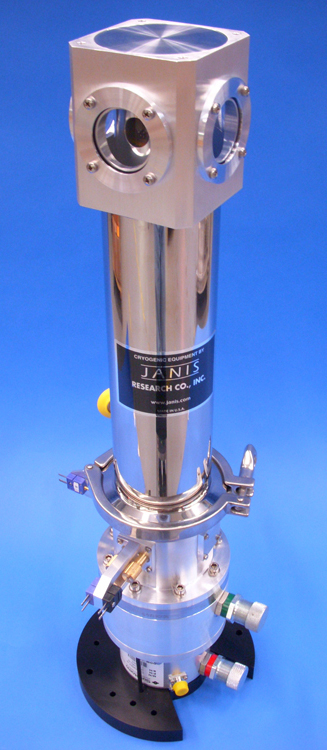

Model CCS-400H/204N with a special mounting flange on the bottom of the cold head

This mounting flange can be included on most closed-cycle systems with a Sumitomo CH-202, CH-204, or CH-204N cold head. This is an optional item and not included in our standard systems. If you are interested in the mounting flange, please contact Janis. CCS-400H-204N Special Mounting Flange

Diacell® CCS-DAC system from easyLab

easyLab's model Diacell® CCS-DAC system uses a special model CCS-100/204 cryostat. Visit easyLab's website for more information. Diacell CCS-DAC easyLab

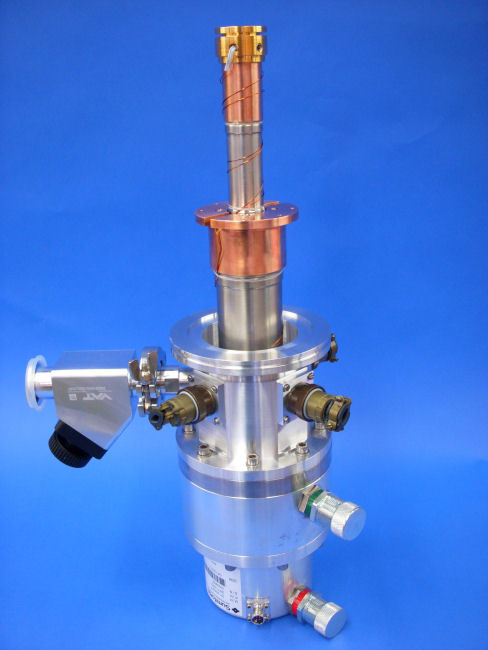

Model CCS-HV/204 high-vacuum 10 K cryocooler

This photo shows a special high-temperature model CCS-HV/204. The instrumentation skirt was machined from a solid aluminum tube. It has a special flange for mating with the customer's vacuum chamber. This cryostat is designed for high vacuum. The customer provided the radiation shield and vacuum chamber (not shown). CCS-HV-204

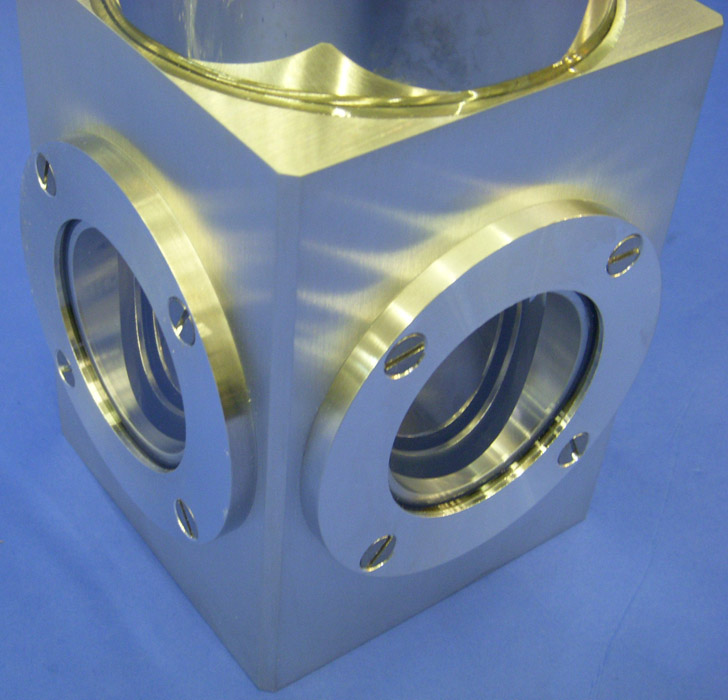

Standard window block with countersunk screw holes option

Janis Research usually uses pan-head screws on the retainers of window blocks, which add about 0.125 into each side of the window block. In cases were space is an issue, talk to your sales engineer about countersunk screw holes in the retainers so that flathead screws can be used, as shown in this photo. This option can be offered on most window blocks with o-ring sealed windows. The window block shown can be used on our model VPF-100, VPF-800, ST-100, CCS-150, CCS-100/202, CCS-100/204, and SHI-4-2. VPF-800 Flathead Screws

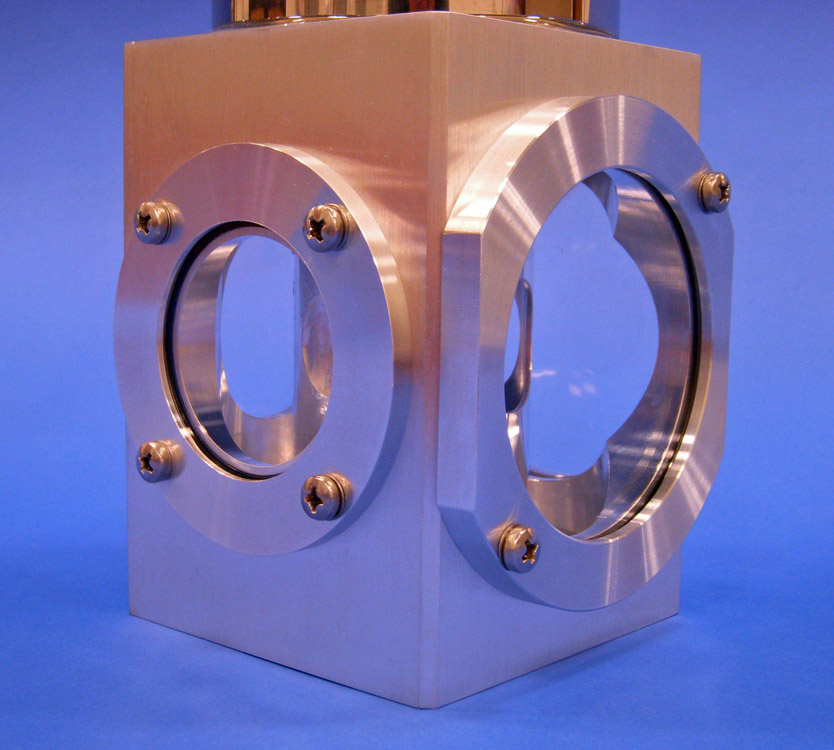

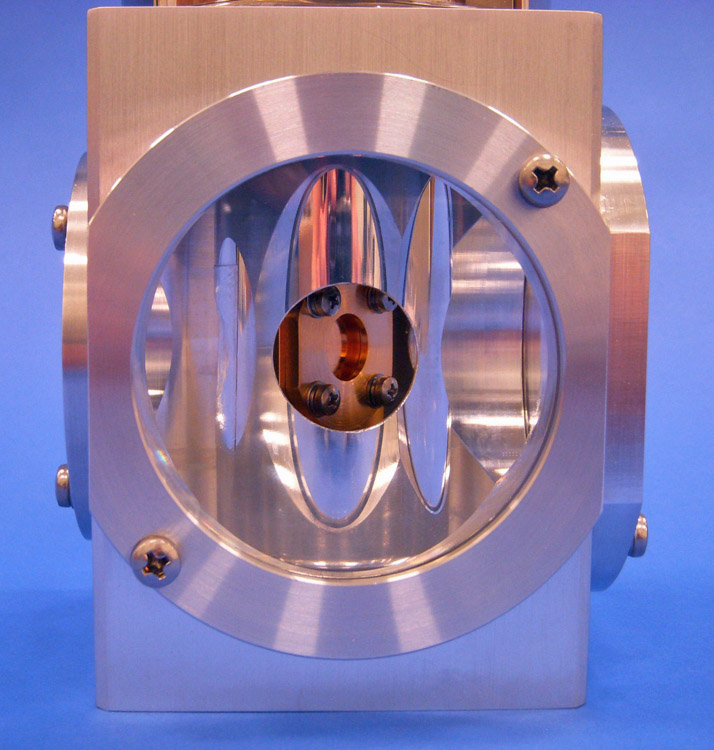

Modified window block

The photos show a standard optical cryostat with a specially modified window block. Two of the windows are our standard 1.63 in diameter clear view fused quartz. The other two windows are a special 2.63 in diameter clear view fused quartz. This window block can be used as an option on many other systems such as ST-100, VPF-100, SHI-4-2, SHI-4-5, SHI-4, CCS-150, CCS-450, CCS-100/202, and CCS-100/204. (The CCS-100/204 uses an optional large window using a different window block.) Contact Janis for more information. Modified Window Block close-up Modified Window Block close-up sample area

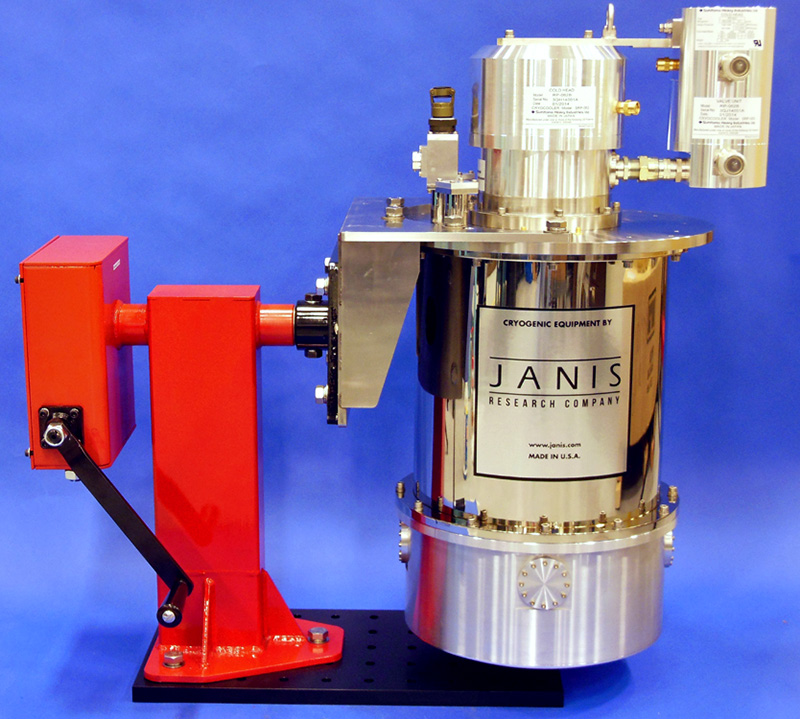

Optional rotating stand for 4 K and 10 K cryocooler systems

This model PTSHI-4-5 features an optional rotating stand that allows the user to flip the entire cryostat upside-down. This is convenient for changing samples. The cryostat itself is rather heavy and it doesn't have any flat surface that will allow it to rest upside-down by itself. Without this rotating stand, gaining access to the sample area would be very difficult and inconvenient. This particular stand is designed to hold the cryostat 50 mm above the surface of an optical table but could be designed to hold the cryostat at any height specified by the customer. This stand can be used for 4 K and 10 K cryocooler systems. Contact Janis for more information. PTSHI-4-5 Rotating Stand
