Platinum sensor specifications

Accuracies

Calibrated platinum sensors deliver the highest accuracy across a broad temperature range. For applications at or above 70 K where ultra-high precision is not essential, SoftCal offers a practical alternative. This method uses a simplified calibration curve derived from either two (2-point SoftCal) or three (3-point SoftCal) temperature points. Each sensor calibrated with SoftCal has a unique temperature vs. resistance curve.

For applications requiring sensor interchangeability—where multiple sensors conform to a common temperature vs. resistance curve—two options are available: standard and matched. Standard interchangeable platinum are uncalibrated and conform to the default accuracy for 100 Ω Class B platinum sensors (refer to Figure 3). For improved accuracy at 77 K, matched platinum sensors are offered in sets of up to 50 sensors. Each set is aligned to a single, calibrated reference sensor—purchased with the batch—and all sensors in the group are individually verified to match the reference within ±0.1 K at 77 K, ensuring tight conformity across the set.

 CalibratedInterchangeable
 Cal to 325 KCal to 500 KCal to 800 K2-point SoftCal3-point SoftCalStandardMatched
30 K±10 mK±10 mK±10 mK
77 K±12 mK±12 mK±12 mK±250 mK±250 mK±1200 mK±125 mK
300 K±23 mK±23 mK±23 mK±900 mK±250 mK±500 mK±500 mK
400 K±41 mK±210 mK±1.3 K±250 mK
500 K±46 mK±210 mK±1.4 K±1.4 K
800 K±310 mK

Interchangeable matched sensors' accuracy is ±0.1 K at 77 K for each matched group

Typical sensitivity Ω/K

Typical sensitivity over temperature for platinum temperature sensors

Figure 1 Typical sensitivity over temperature for platinum

Typical resistance Ω

Typical resistance curve of a platinum sensor

Figure 2 Typical resistance curve of a platinum sensor

Interchangeable standard platinum

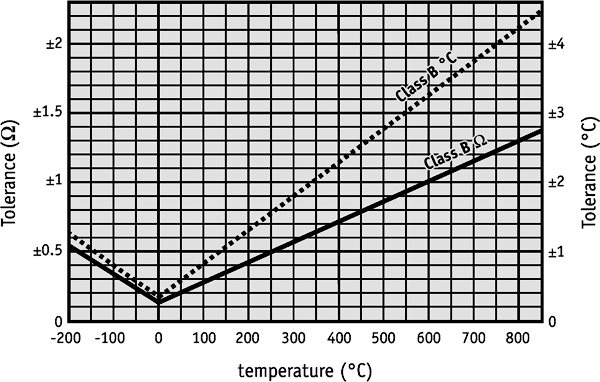

100 Ω accuracy for class B platinum sensors

Figure 3 100 Ω accuracy for class B platinum sensors

Performance specifications

 PT-103PT-111
Temperature range14 K to 873 K14 K to 673 K
Recommended excitation1 mA
Short-term stability1±5 mK at 77 K
Long-term stability2±10 mK at 77 K
Thermal response time1.75 s at 77 K, 12.5 s at 273 K2.5 s at 77 K, 20 s at 273 K
Dissipation at rated excitation (typical)100 µW at 273 K
Magnetic fieldsFair above 30 K
RadiationRecommended
Maximum vacuum1 × 10-4 Pa1 × 10-7 Pa
FerromagneticNoYes
Standard curve (model-dependent)IEC 751

1Short-term reproducibility data is obtained by subjecting sensor to repeated thermal shocks from 305 K to 77 K
2If not heated above 475 K—long-term stability data is obtained by subjecting sensor to 200 thermal shocks from 305 K to 77 K

Physical specifications

 PT-103PT-111
Lead wireTwo-lead, no polarity
Package optionsStandard, AMStandard
Mass120 mg52 mg
Wire95% platinum, 5% rhodium alloyPlatinum
Soldering standardJ-STD-001 Class 2
Internal atmosphereFully-filled powderSolid glass
Maximum vacuum1 × 10-4 Pa1 × 10-7 Pa
Nonmagnetic packagingYesNo

Typical magnetic field-dependent temperature errors3 ΔT/T (%) at B (magnetic field)

 Package parallel to field B
 2.5 T5 T8 T14 T19 T
20 K20100250
40 K0.51.5368.8
87 K0.040.140.411.7
300 K0.010.0010.020.070.13

3Recommended for use when T ≥ 30 K

PT-103

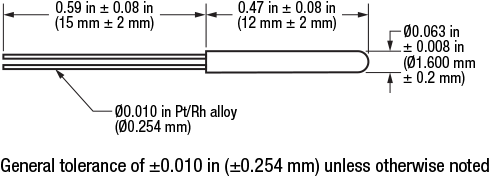

PT-103 dimensional drawing

PT-103-AM

PT-103-AM dimensional drawing

PT-111

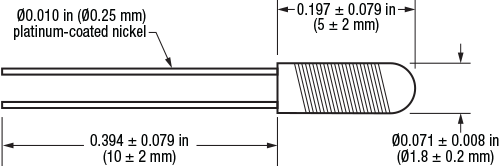

PT-111 dimensional drawing

Interchangeable matched platinum

Order up to 50 interchangeable sensors matched to a single calibrated reference sensor.

PT-103-14L-LNPT-103
Calibrated reference—
14 K to 325 K
PT-103-LN
Interchangeable matched—
Order 2 to 50 matched sensors per reference
PT-103-AM-14L-LNPT-103-AM
Calibrated reference—
14 K to 325 K
PT-103-AM-LN
Interchangeable matched—
Order 2 to 50 matched sensors per reference
PT-111-14L-LNPT-111
Calibrated reference—
14 K to 325 K
PT-111-LN
Interchangeable matched—
Order 2 to 50 matched sensors per reference

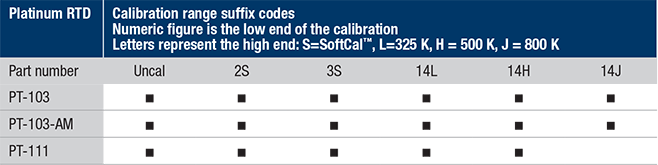

Calibrated platinum

PT-103-2SPT-1032-point SoftCal
PT-103-3S3-point SoftCal
PT-103-14LCalibrated 14 K to 325 K
PT-103-14HCalibrated 14 K to 500 K
PT-103-14JCalibrated 14 K to 800 K
PT-103-AM-2SPT-103-AM2-point SoftCal
PT-103-AM-3S3-point SoftCal
PT-103-AM-14LCalibrated 14 K to 325 K
PT-103-AM-14HCalibrated 14 K to 500 K
PT-103-AM-14JCalibrated 14 K to 800 K
PT-111-2SPT-1112-point SoftCal
PT-111-3S3-point SoftCal
PT-111-14LCalibrated 14 K to 325 K
PT-111-14HCalibrated 14 K to 500 K

Lead extensions

Platinum sensors come standard with approximately 25 mm (1 in) lead wires. Extensions can be added to your device to extend lead length, with a variety of wire types available to suit your application. Below are the most common configurations. Refer to the Lead Extensions datasheet for the complete list.

-QTQuad-Twist™, 36 AWG, 2 m
-QLQuad-Lead™, 32 AWG, 2 m

Temperature controllers

Platinum sensors can be used with both the 336 and the 335 cryogenic temperature controllers.

336Cryogenic temperature controller with 4 inputs (expandable to 8)
335Cryogenic temperature controller with 2 inputs
