MeasureLINK™ Specifications

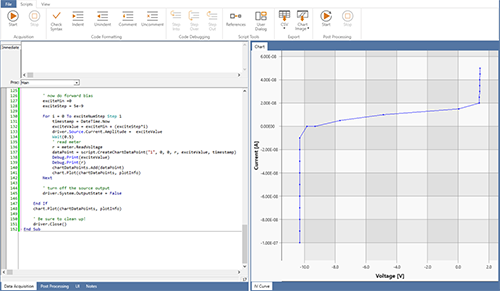

Scripting example:

I-V measurement

Loop through 20 voltage steps

  • Set V
  • Measure I

Script example step 1

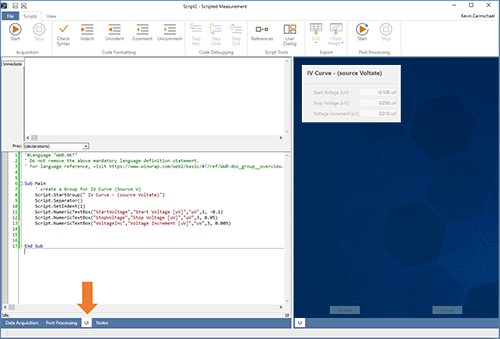

Scripting tool enables presentation of a simple user interface

  • Start voltage
  • Finish voltage
  • Number of steps

Script example step 2





Once script is ready

  • Add to Custom Measurement list
  • Select and add the custom script to the sequence steps from the drop-down list
  • Appears exactly like built-in functions

Script example step 3

Customized measurement sequence

  • Executes sequential steps as defined
  • Presents UI steps such as data entry windows
  • Custom scripts execute like other steps
  • Data collection and graphing can be included

Script example step 4
