FP Series Hall probe specifications

Sensor type

	Description	Active area
NS-180	InAs standard sensor	0.1 mm²

Temperature compensation

	Built-in thermistor	Temperature range
Standard	Yes	0 °C to 90 °C

Stem material

	3-axis	Transverse
Standard	Anodized aluminum tube with a 4 mm square cross-section	Anodized aluminum tube with a 1.5 mm maximum thickness by 4.5 mm rectangular cross-section

Stem dimensions

Length is the distance from the tip of the sensor to the beginning of the handle

	Stem length (mm)	Stem thickness (mm)	Stem width (mm)
FP-NS-180-TS05X-XX	50	4.5	1.5
FP-NS-180-TS15X-XX	150
FP-NS-180-TS30X-XX	300
FP-NS-180-ZS05X-XX	50	4.0	4.0
FP-NS-180-ZS15X-XX	150
FP-NS-180-ZS30X-XX	300

Stem operating temperature range

	3-axis	Transverse
Standard	0 °C to 90 °C	0 °C to 90 °C

Handle

	Handheld (default)	Mountable
Length, including strain relief	140 mm	110 mm
Diameter	13 mm	NA
Thickness	NA	10 mm
Width	NA	12 mm
Material	ABS/polycarbonate blend with anodized aluminum grip	Machined aluminum with brass screws. Mountable to fixture using customer-supplied M2 screws with 3.8 mm diameter socket head and 2 mm diameter alignment pins
Operating temperature range	0 °C to 80 °C	0 °C to 80 °C

Cable

	Single-axis	3-axis
Diameter	4 mm (0.17 in)	5.2 mm (0.21 in)
Bend radius	40 mm (1.57 in)	52 mm (2.05 in)
Operating temperature range	-40 °C to 80 °C
Conductors	4 twisted-pair	8 twisted-pair
Cable shield	100%-coverage foil
Cable insulation	Modified polyphenylene ether
Connector	26-pin Mini-D with quick-release latch

Probe active areas

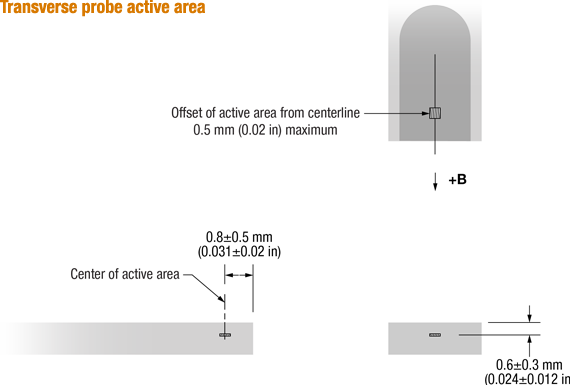

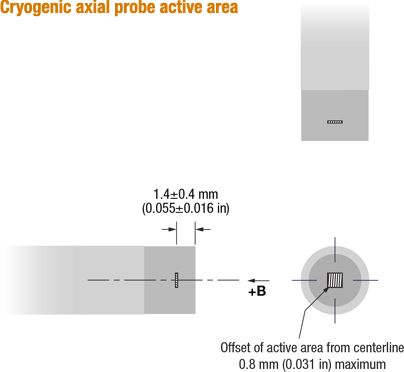

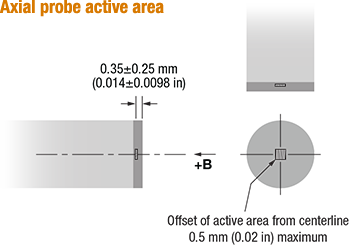

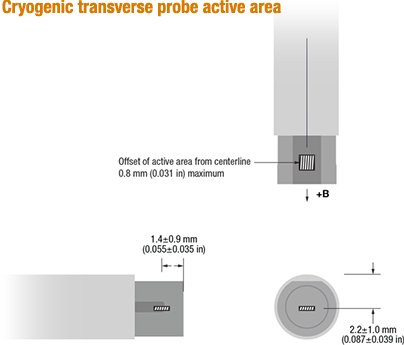

Active area - Flexible probe active area
