Model 372 and Scanner Performance

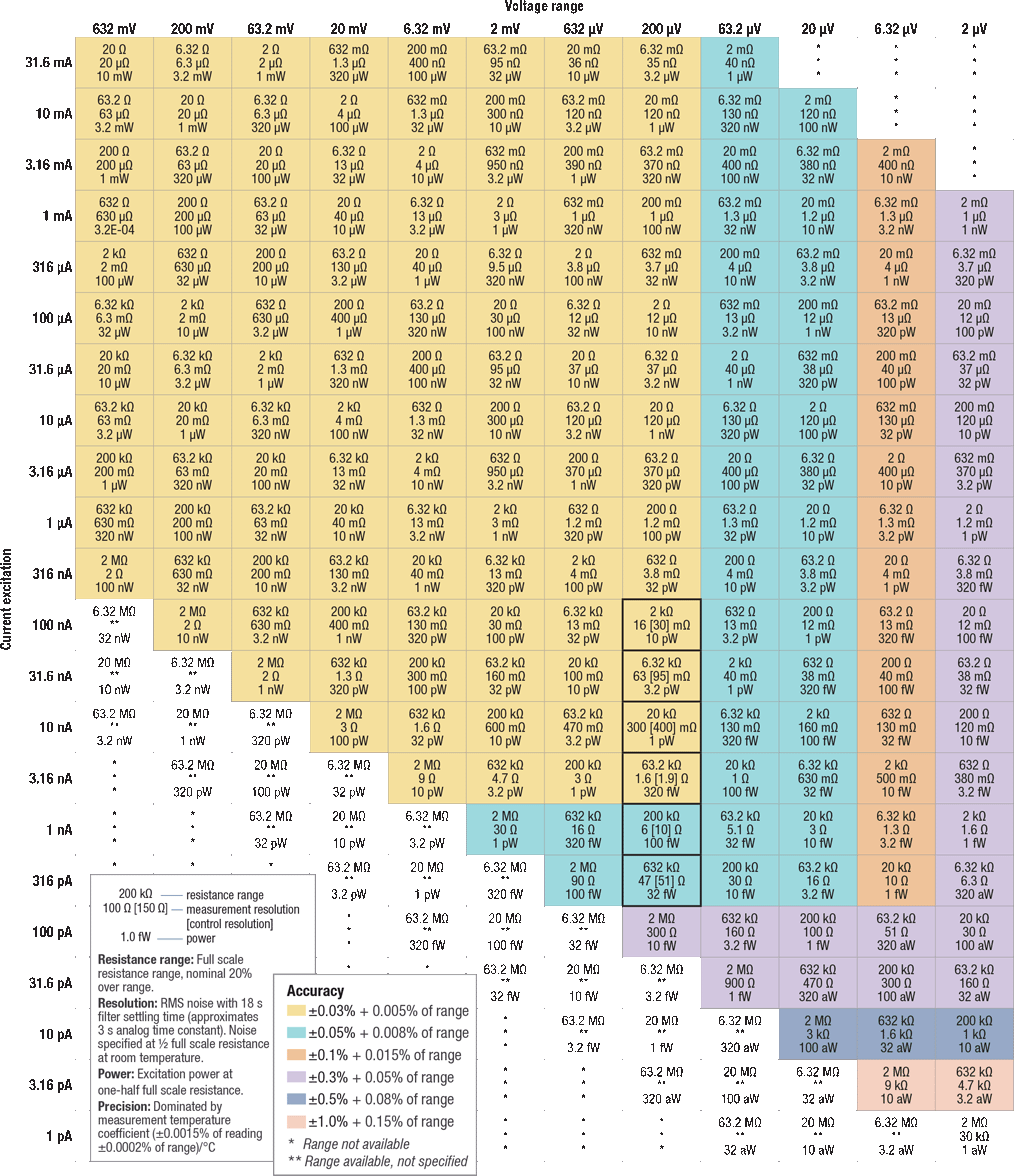

372/3726 performance specification table

The values below apply to the measurement input. The control input operates over a reduced range indicated by the black-bordered cells. These cells contain bracketed numbers to indicate the resolution that applies to the control input.

372 and 3726 scanner performance specifications

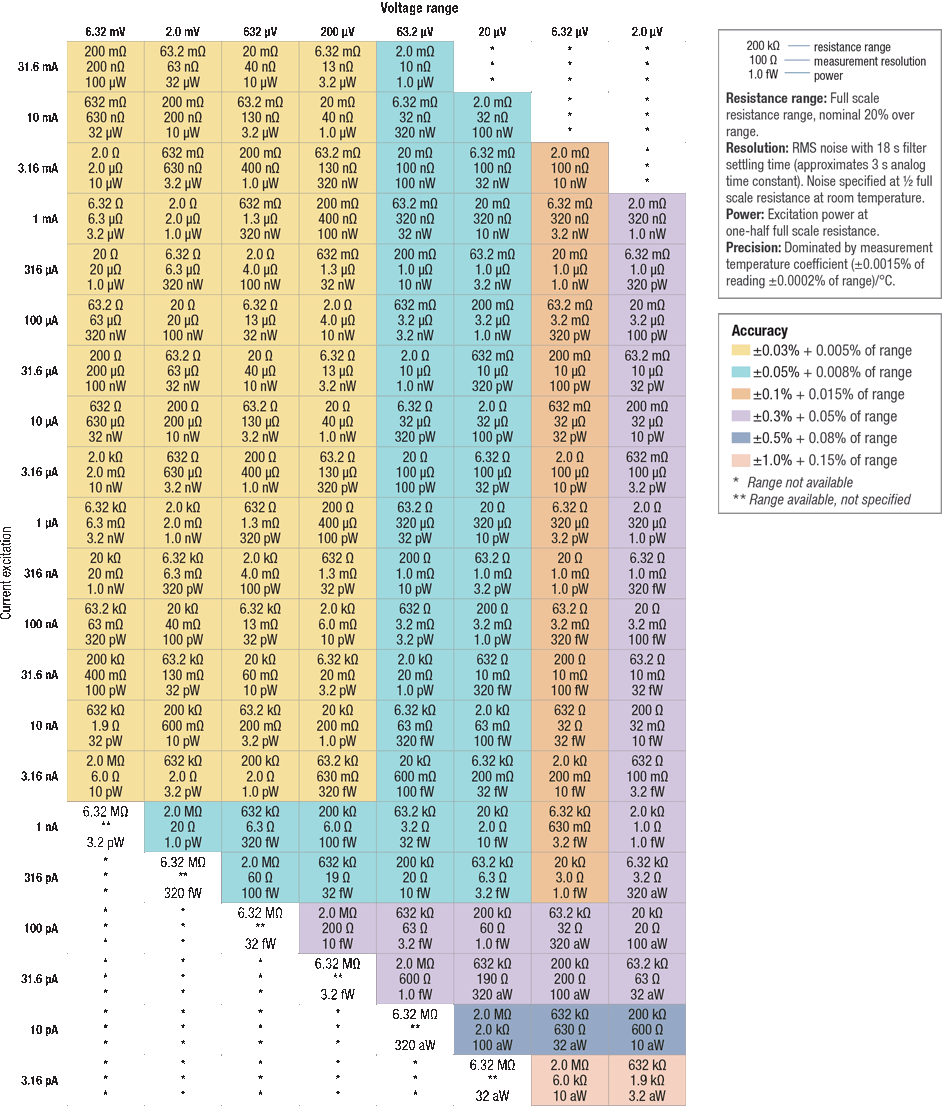

372/3708 performance specification table

372 and 3708 scanner performance specifications
