CCS-CP large sample space cryostats
- Standard 200 mm (8 in) diameter cold plate (other sizes available)
- <4 K to 300 K
- Cryogen-free
- Sample in vacuum
- Split design for easy access to the sample area
| Standard cold plate | Min temp | Max temp | |
|---|---|---|---|
| CCS-CP | 200 mm (8 in) | <4 K | 300 K |
For low-vibration applications
Pair an ST-500-LGV with an Infinite Helium

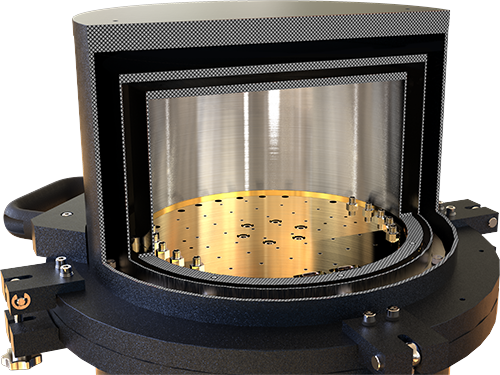

These Lake Shore closed-cycle refrigerator cryostats cool a large cold plate in vacuum. Cold plates are available from 102 mm (4 in) to 305 mm (12 in) in diameter. RF and DC feedthroughs and wiring are available, as well as custom optical designs.
| Wiring options | ||
|---|---|---|
| DC | Up to 100 PhBr wires (twisted pairs), thermally anchored at the first stage and terminated in D-sub connectors at the cold plate. | |
| RF | Standard SMA or high-density feedthroughs with 0 dB attenuators at the first stage and SMA connectors at the cold plate. 40 GHz and 67 GHz options also available. |
Every cryostat comes with a Lake Shore temperature controller and calibrated sensor
Complete your setup
Source + measure + lock-in
MeasureLINK control software
Need a custom solution?
CCS-CP specifications
| CCS-CP | |
|---|---|
| Cooling type | CCR |
| Temperature range | <4 K to 300 K |
| Typical temperature stability1 | ±50 mK |
| Sample environment | Vacuum |
| Cold head location | Bottom |
| Optical | ✖ (Optional top or side windows) |
| Cold plate size | 200 mm (8 in) diameter standard; other sizes up to 300 mm (12 in) available |
| Shielding | Cooled radiation shields on first stage and cold plate |
| Recommended maintenance | 13,000 h |
1Measured with temperature controller
Facility requirements
Water-cooled
| CCS- | Cold head | Recommended compressor maintenance interval | Recommended cold head maintenance interval | 60 Hz power requirements | 50 Hz power requirements | Cooling water requirements | Compressor size |
|---|---|---|---|---|---|---|---|
| CP | -408 -415 -418 | 30,000 h | 10,000 h | 200 VAC, 3-phase, 7.5 to 7.8 kW or 480 VAC, 3-phase, 7.5 to 7.8 kW | 200 VAC, 3-phase, 6.6 to 6.9 kW or 380 to 415 VAC, 3-phase, 6.6 to 6.9 kW | 6 to 9 L/min at 5 to 25 °C | 443 mm × 493 mm × 532 mm high; 100 kg |
Air-cooled
| CCS- | Cold head | Recommended compressor maintenance interval | Recommended cold head maintenance interval | 60 Hz power requirements | 50 Hz power requirements | Cooling air requirements | Compressor size |
|---|---|---|---|---|---|---|---|
| CP | -408 -415 -418 | 30,000 h | 10,000 h | 200 VAC, 3-phase, 7.5 to 8.3 kW steady state or 460/480 VAC, 3-phase, 7.5 to 8.3 kW | 200 VAC, 3-phase, 6.5 to 7.2 kW steady state or 380/400/415 VAC, 3-phase, 6.5 to 7.2 kW | 23 m3/min | 450 mm × 485 mm × 925 mm high; 155 kg |
