10 K cryocoolers — Mössbauer spectroscopy (CCS-8XX Series)

Designed specifically for Mössbauer spectroscopy, the model CCS-8XX Series include design features optimized specifically for this application. The most critical requirement for successful measurements is the isolation of the sample from the refrigerator vibrations.

Standard configuration

In order to achieve vibration isolation, a flexible bellows assembly is installed between the sample support flange and the refrigerator body. The support flange is mounted to an independent table or frame (either customer or Lake Shore supplied), and the flexible bellows dampen vibrations before they reach the sample support. Typical line broadening of 0.01 mm/s is achieved through this technique. The sample support rod is suspended within a copper cylinder (with Mylar windows for maximum gamma transmission.) The sample is cooled indirectly, using static helium exchange gas inside the sample chamber. This arrangement permits samples to be quickly exchanged (via top-loading access) without warming the entire cryostat. It is also ideal for uniform cooling of poor thermally conducting samples, such as foils and powders.


  • Vibration isolation mounting stand
  • Vibration isolation bellows
  • Isothermal static helium gas sample chamber
  • Optical vacuum jacket and radiation shield (with two Mylar windows)
  • Gold-plated OFHC copper sample holder
  • 10-pin electrical feedthrough for customer wiring into the sample area
  • Two spare electrical access ports
  • Evacuation valve and safety pressure relief
  • Model 8200 compressor and 10 ft gas lines

Available options:

  • Additional electrical feedthroughs (BNC, SMA, multipin, and others)
  • Additional optical window ports
  • Larger or smaller diameter sample chamber
  • Custom configurations

Lake Shore — environment by JANIS

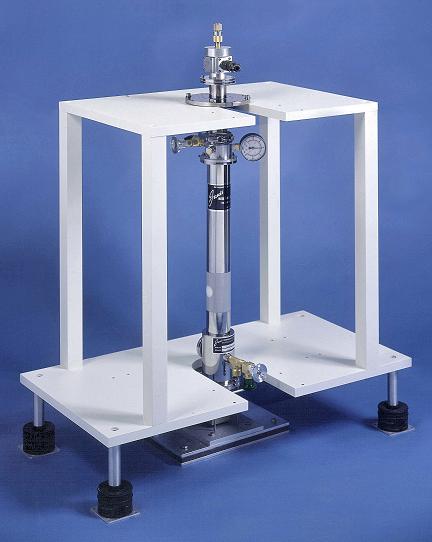

CCS-850 Mossbauer 10 K CCR

CCS-850 specifications

Temperature~15 K to 300 K
Sample change time2 min
Initial cooldown time~3 h to 15 K
System weight87 kg (190 lb)
Compressor59 kg (140 lb)
Cold head14 kg (30 lb)
Power supply208/220 VAC, single-phase, 50/60 Hz
Power requirements2.0 kW, 8.5 A (water-cooled); 2.1 kW, 10 A (air-cooled)
Water-cooled compressor requirements
Flow3.8 ± 1.9 L/min (1.0 ± 0.5 gal/min)
Temperature32 °C (90 °F) maximum, 10 °C (50 °F) minimum

Download the 10 K Cryocoolers Water-cooled Pressure Table

Vibrational line broadening0.01 mm/s (with proper mounting)

CCS-850 mossbauer spectra chartThis image shows Fe57 Mössbauer spectra (dots) of a 25 µm iron metal foil at 298 K with the CCR off and on. The velocity scan of ±2 mm/s covers only the innermost lines of the iron metal sextet. Also shown are least squares fits (lines) of a symmetric quadrupole pair with Lorentzian line shapes to each spectrum. The results of the fits were linewidth estimates of 0.234 mm/s with the CCR off and 0.241 mm/s with the CCR on. The uncertainty in the line width estimates due to the counting statistics is ±0.002 mm/s.

NOTE: Data provided by Science Engineering & Education Co. (SEE Co. — formerly Web Research Co.), http://www.seeco.us. Special thanks to Professor Darby Dyar, Mount Holyoke College.
