HR Series Specifications

HR Series Cernox® Sensors

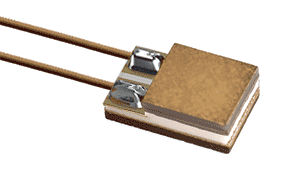

HRcernox

Packages available:
  • SD-HT
  • CU-HT

Calibration options
  • Uncalibrated (requires customer calibration)
  • 20 K to 325 K
  • 20 K to 420 K


Lead option

 SD packageCU package
Initial lead configurationNo leads (bare gold pads)Standard copper leads (32 mm [1.25 in])Quad-Lead, 36 AWG, Formvar insulation (0.91 m [36 in])
Lead extension wire, attached to initial lead configuration (optional)N/AQuad-Twist or Quad-Lead (Formvar insulation), 32 or 36 AWGQuad-Twist or Quad-Lead (Formvar insulation), 32 or 36 AWG
Lead extension lengths (optional)N/A2 m (79 in) or 5 m (197 in)2 m (79 in) or
5 m (197 in)


Sensor type: Cernox® (see standard product specifications for more general sensors characteristics)

Temperature curve: CX-1080-like — Cernox devices with temperature curves centered around the CX-1080 model, but also extending beyond these limits

Useful temperature range: 20 K to 420 K

Recommended excitation: <10 mV

Soldering standard: J-STD-001 Class 3


Typical performance

 Resistance (Ω)|Sensitivity| (Ω/K)
20 K3,800 to 26,000260 to 2,600
50 K1,200 to 5,00034 to 170
77.35 K700 to 2,40010 to 45
100 K500 to 1,6005.8 to 22
150 K290 to 8002.4 to 8
200 K200 to 5001.2 to 3.7
250 K150 to 3500.7 to 2
300 K120 to 2500.5 to 1.3
