InAs and GaAs Hall sensor specifications

Axial Hall sensors

HGA-2010

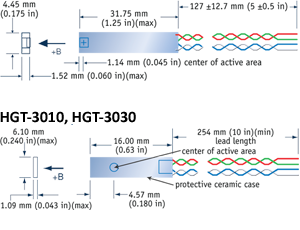

HGA-2010 drawing

HGA-2302

HGA-2302 drawing

HGA-2303

HGA-2303 drawing

HGA-3010*, HGA-3030*

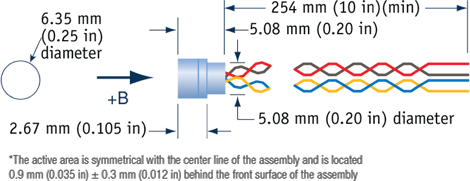

HGA-3010/3030 drawing

* The active area is symmetrical with the center line of the assembly and is located approximately 0.030 in behind the front surface of the assembly

 HGA-2010HGA-2302HGA-2303HGA-3010HGA-3030
DescriptionGeneral purpose axial; high sensitivity General purpose axial; 3.30 mm (0.13 in) diameter General purpose axial; 4.95 mm (0.195 in) diameter Instrumentation quality axial; low temperature coefficient; phenolic package Instrumentation quality axial; phenolic package
RoHS compliantNoNoNoYesYes
Active area (approx) 0.127 × 0.127 mm
(0.005 × 0.005 in) square
0.51 × 1.02 mm
(0.020 × 0.040 in) rectangle
0.51 × 1.02 mm
(0.020 × 0.040 in) rectangle
0.76 mm (0.030 in) diameter circle 0.76 mm (0.030 in) diameter circle
Input resistance (approx) 450 Ω to 900 Ω2 Ω2 Ω1 Ω2 Ω
Output resistance (approx) 550 Ω to 1350 Ω2 Ω2 Ω1 Ω2 Ω
Nominal control current (lCN)1 mA 100 mA
Maximum continuous current (non-heat sinked, 25 °C) 10 mA 150 mA 200 mA 300 mA
Magnetic sensitivity✝✝
(lc = nominal control current)
11 mV/kG to 28 mV/kG 5.5 mV/kG to 11.0 mV/kG5.5 mV/kG to 11.0 mV/kG0.55 mV/kG to 1.05 mV/kG6.0 mV/kG to 10.0 mV/kG
Maximum linearity error
(sensitivity vs. field, % rdg)
±1 (-10 kG to +10 kG) ±3 (-20 kG to +20 kG)±1 (-10 kG to +10 kG) ±1 (-30 kG to +30 kG) ±1.5 (-100 kG to +100 kG)±0.30 (-10 kG to +10 kG) ±1.25 (-30 kG to +30 kG)
Zero field offset voltage
(lc = nominal control current)
±2.8 mV (max) ±100 µV (max) ±50 µV (max) ±75 µV (max)
Operating temperature range -20 °C to + 75 °C -40 °C to + 100 °C
Mean temperature coefficient of magnetic sensitivity -0.06%/°C (max) -0.08%/°C (max) -0.005%/°C (max) -0.04%/°C (max)
Mean temperature coefficient of offset (lc = nominal control current) ±6 µV/°C (max) ±1 µV/°C (max) ±0.4 µV/°C (max) ±0.3 µV/°C (max)
Mean temperature coefficient of resistance ±0.3%/°C (approx) +0.18%/°C (approx) +0.18%/°C (approx) ±0.15%/°C (approx) +0.18%/°C (approx)
Leads34 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solder36 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solder34 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solder34 AWG copper with poly-nylon insulation; leads tinned with SAC305 lead-free solder
DataSingle sensitivity value at lc = 1 mA Single sensitivity value at lc = 100 mA Single sensitivity value at lc = 100 mA Room temperature, 30 kG data supplied



Not compatible with Lake Shore gaussmeters
✝✝Sensitivity nominal control current without a linearizing resistor. A linearizing resistor may be required to achieve specified linearity, resulting in slightly reduced sensitivity. See Chapter 4.3 of the Hall sensor manual for more details.


Transverse Hall sensors

HGT-1010

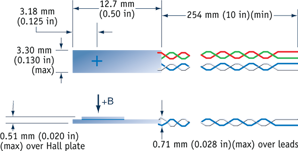

HGT-1010 drawing

HGT-1020

GT-1020 drawing

HGT-2101

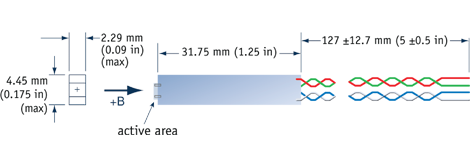

HGT-2101 drawing

HGT-2010

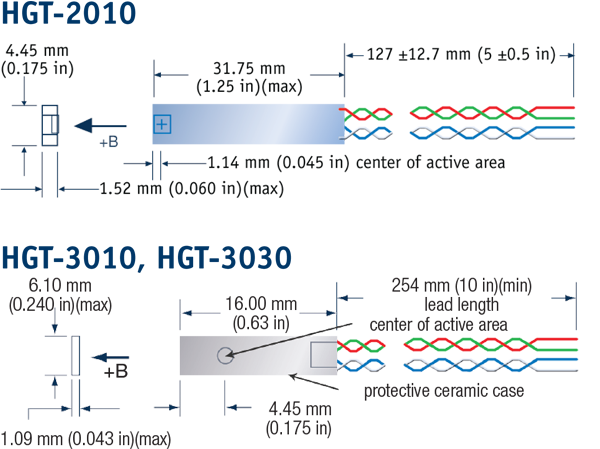

HGT-2010 and HGT-3010/3030 drawings
 HGT-1010HGT-1020HGT-2010*HGT-2101*HGT-3010HGT-3030
DescriptionGeneral purpose transverse  General purpose transverse; high sensitivityLow cost; high sensitivity; surface mountInstrumentation quality transverse; low temperature coefficient; ceramic package Instrumentation quality transverse ceramic package
RoHS compliantNoNoNoYesYesYes
Active area
(approx)
1.02 mm (0.040 in) diameter circle 0.76 mm (0.030 in) diameter circle 0.127 mm (0.005 in) square1.02 mm (0.040 in) diameter circle
Input resistance (approx) 2 Ω450 Ω to 900 Ω1 Ω2 Ω
Output resistance (approx) 2 Ω550 Ω to 1350 Ω600 Ω to 2000 Ω1 Ω2 Ω
Nominal control current (lCN)100 mA 1 mA 100 mA
Maximum continuous current (non-heat sinked, 25 °C) 250 mA 200 mA 10 mA  300 mA
Magnetic sensitivity**
(lc = nominal control current)
7.5 mV/kG to 12.5 mV/kG  11 mV/kG to 28 mV/kG0.55 mV/kG to 1.05 mV/kG6.0 mV/kG to 10.0 mV/kG
Maximum linearity error
(sensitivity vs. field)
±1.0% rdg (-10 to 10 kG)±1% rdg (-10 to 10 kG) ±2% rdg (-20 to 20 kG)±2% rdg (-10 to 10 kG)±1% rdg (-30 to 30 kG) ±1.5% rdg (-100 to 100 kG)±0.30% rdg (-10 to 10 kG) ±1.25% rdg (-30 to 30 kG)
Zero field offset voltage
(lc = nominal control current)
±100 µV (max) ±2.8 mV (max) ±50 µV (max) ±75 µV (max)
Operating temperature range -40 °C to +100 °C -20 °C to +75 °C  -40 °C to +125 °C -40 °C to +100 °C
Mean temperature coefficient of magnetic sensitivity -0.08%/°C (max) -0.06%/°C (max)  -0.005%/°C (max) -0.04%/°C (max)
Mean temperature coefficient of offset
(lc = nominal control current)
±1 µV/°C (max)±6 µV/°C (max)±0.4 µV/°C (max)±0.3 µV/°C
Mean temperature coefficient of resistance ±0.18%/°C (approx) ±0.3%/°C (approx) ±0.15%/°C (approx) ±0.18%/°C (approx)
Leads34 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solder36 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solder34 AWG copper with poly-nylon insulation; leads tinned with Sn63Pb37 solderNA34 AWG copper with poly-nylon insulation; leads tinned with SAC305 lead-free solder
DataSingle sensitivity value at lc = 100 mASingle sensitivity value at lc = 1 mAUncalibratedRoom temperature, 30 kG data supplied

*Not compatible with Lake Shore gaussmeters
**Sensitivity nominal control current without a linearizing resistor. A linearizing resistor may be required to achieve specified linearity, resulting in slightly reduced sensitivity. See Chapter 4.3 of the Hall sensor manual for more details.


Cryogenic Hall sensors

HGCA-3020*

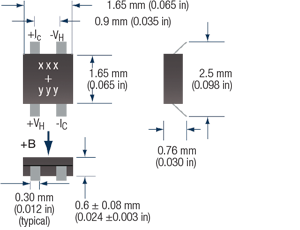

HGCA-3020 drawing

HGCT-3020

HGCT-3020 drawing
 HGCA-3020HGCT-3020
DescriptionCryogenic axial; phenolic package Cryogenic transverse; ceramic package
Active area (approx) 0.76 mm (0.030 in) diameter circle1.02 mm (0.040 in) diameter circle
Input resistance (approx) 1 Ω
Output resistance (approx) 1 Ω
Nominal control current (lCN)100 mA
Maximum continuous current (non-heat sinked, 25 °C) 300 mA
Magnetic sensitivity** (lc = nominal control current) 0.55 mV/kG to 1.05 mV/kG
Magnetic linearity error (sensitivity vs. field)±1.0% rdg (-30 kG to +30 kG); 2.0% rdg (-150 kG to +150 kG)
Zero field offset voltage (lc = nominal control current) ±200 µV (max)
Operating temperature range 1.5 K to 375 K
Mean temperature coefficient of magnetic sensitivity See temperature error table below
Mean temperature coefficient of offset
(lc = nominal control current)
±0.4 µV/K (max)
Mean temperature coefficient of resistance ±0.6%/K (max)
Leads34 AWG copper with Teflon® insulation; leads tinned with Sn63Pb37 solder
DataRoom temperature, 30 kG data supplied

**Sensitivity nominal control current without a linearizing resistor. A linearizing resistor may be required to achieve specified linearity, resulting in slightly reduced sensitivity. See Chapter 4.3 of the Hall sensor manual for more details.

Temperature error table

The magnetic sensitivity generally increases with lower temperature. The sensitivity increase versus room temperature is as follows:

 Change in magnetic sensitivity (approx)
Room temperatureRef
200 K +0.05%
100 K -0.04%
80 K -0.09%
20 K -0.4%
4 K -0.7%
1.5 K -1.05%

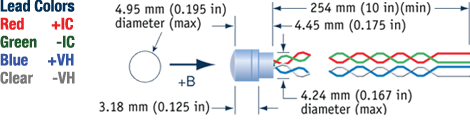

Lead colors
Red+IC
Black-IC
Blue+VH
Yellow-VH
