ST-300-MS Compact Cryostat for Microscopy

Designed as an alternative to the ST-500 microscope cryostat, this compact cryostat combines short working distance with the standard SuperTran design. The ST-300-MS is intended for use in experiments with very tight space restrictions and is available with a compact or ultra-compact window block.

Standard configuration

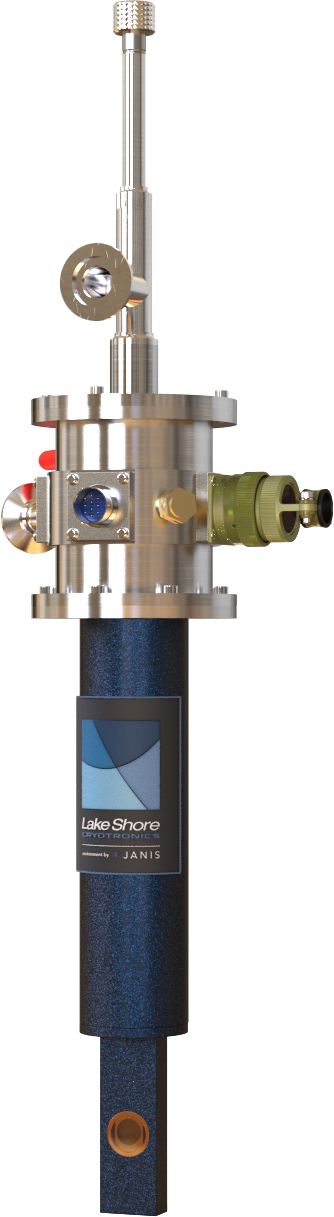

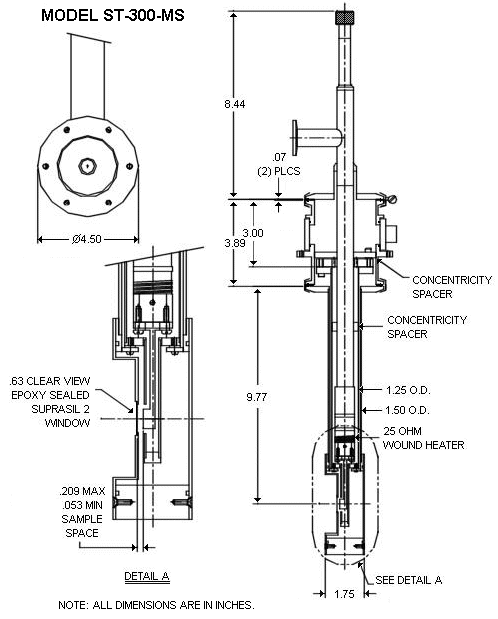

ST-300-MS supertran continuous flow cryostat

The ST-300-MS cryostat is intended for use in experiments where space restrictions do not allow the use of the ST-500. While this cryostat does not have the ultra-low vibration and thermal drift characteristics of the ST-500 cryostat, the vibration levels are still submicron.

As with all SuperTran cryostats, the ST-300-MS system includes a flexible high-efficiency variable flow cryogen transfer line that delivers liquid helium or liquid nitrogen to a two-stage heat exchanger and sample mount. The ST-300-MS is portable, easily mounted in a variety of configurations, and can be used both in transmission and reflection geometries. The sample holder position is adjustable to allow for samples of varying thicknesses.

ST-300-MS supertran continuous flow cryostat

Options include:

  • Ultra-compact design for very restricted spaces
  • Electrical and RF feedthroughs
  • Alternative window materials and sizes
  • A complete system solution including temperature controllers, pumping systems, and storage Dewars
Janis — a Lake Shore Company

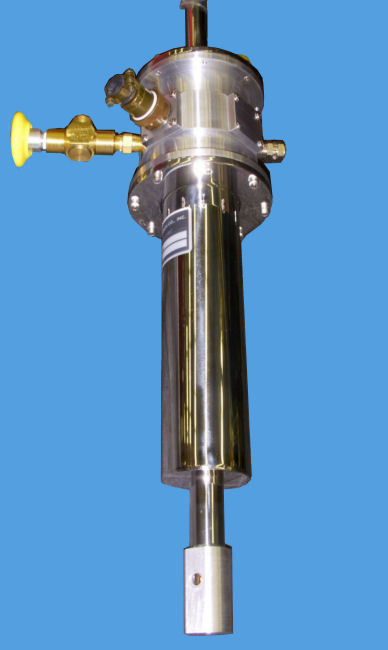

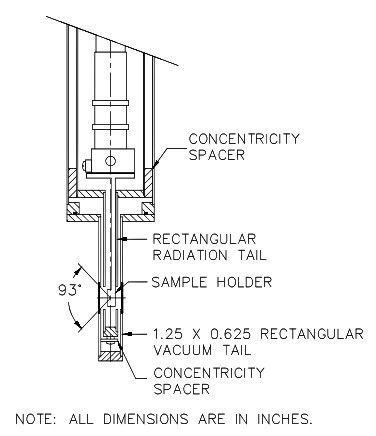

ST-300-MS Rectangular Vacuum Tail

ST-300-MS Specifications

Temperature range<2 to 325 K (500 K optional)
Initial cooldown time30 min
Nominal temperature stability (with controller)50 mK or less
OrientationAny position (with increased helium consumption)
System Weight (without transfer line)10 lb (4.6 kg)
Cryogen consumption on cooldown0.4 L LHe (325 to 4.2 K)
0.1 L LN2 (325 to 77 K)
Nominal cryogen consumption rate<0.6 L/h LHe (5 K)
0.1 L/h LN2 (100 K)
NOTE: Specifications do not include optical or experimental heat loads and assume vertical orientation.
Specifications may change depending on the length of the transfer line flexible section.



Other configurations

Special ST-300-MS

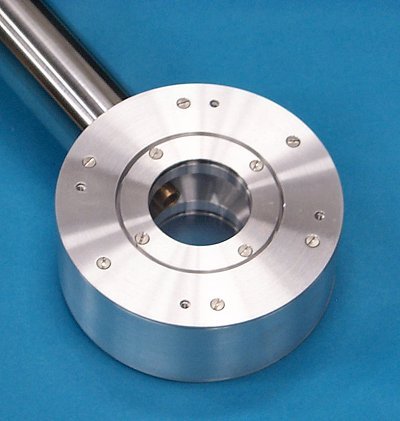

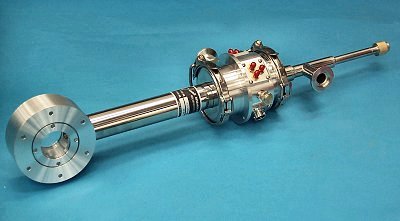

Special ST-300-MS continuous flow cryostat Special ST-300-MS continuous flow cryostat close-up

Special ST-300-MS with round vacuum tail

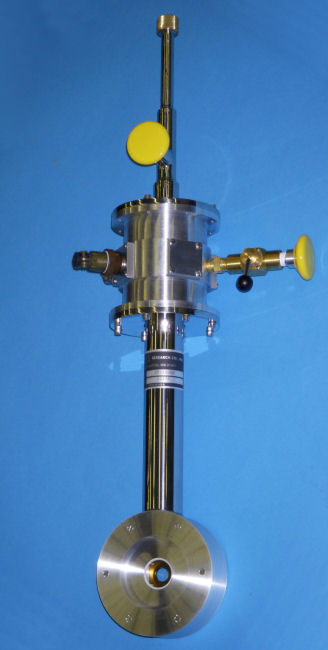

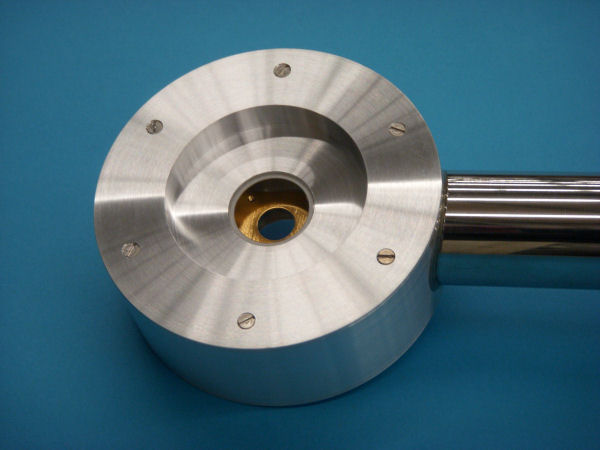

Special ST-300-MS Round Vacuum Tail Special ST-300-MS Round Vacuum Tail close-up

Special ST-300-MS with round vacuum tail

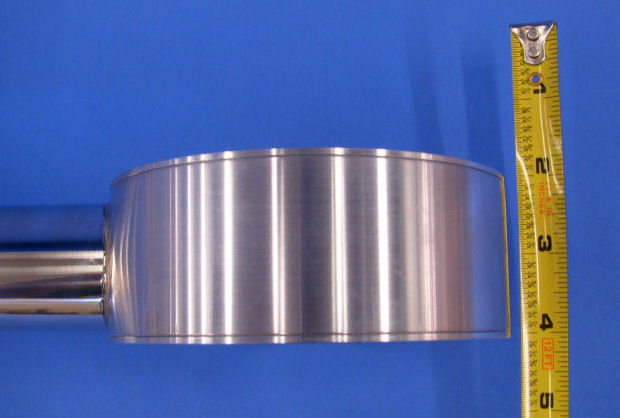

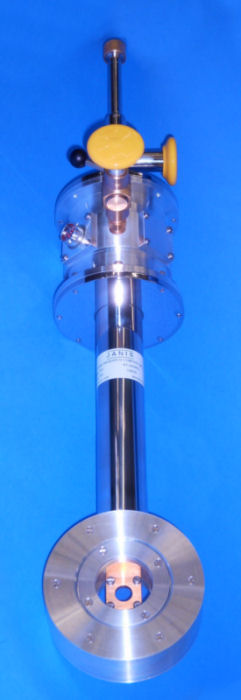

Special ST-300-MS with Round Vacuum Tail ST-300-MS with Round Vacuum Tail sideview

Special ST-300-MS with rectangular window block, sapphire windows, and end-user designed sample holder

This particular system is designed for use only with LN2, so there is no radiation shield in the sample area. The end-user only needs to remove the window block to access the sample and will never need to remove the entire vacuum shroud. Special ST-300-MS with Rectangular Window Block ST-300-MS rectangular window block close-up
