Germanium sensor package and mounting adapter

Germanium packages and adapters allow the sensor to be soldered in place, screwed on, bolted down, inserted into a hole, or inserted through a pressure seal in the form of a thermowell. Appendix C Sensor Packaging and Installation discusses techniques for correctly installing cryogenic temperature sensors. Special packaging is also available—consult Lake Shore for custom orders.

Additional information about Lake Shore sensors and packaging can be found in our Temperature Sensor Selection Guide.

Each sensor package or adapter has been rated for four attributes or characteristics. These ratings give a general idea of how a package will perform and aid in the early decision-making process but are not a substitute for detailed specifications.

Germanium packages
  • AA canister sensor soldered into a flat, copper bobbin with the sensor leads thermally anchored to the bobbin
  • Can be mounted to any flat surface with a 4-40 or M3 screw (not supplied)

Adapter material: Copper bobbin, gold-plated (AA canister epoxied to bobbin)

Leads: 0.91 m (36 in), 36 AWG, color-coded, Quad-Lead™

Lead material: Phosphor bronze Grade A alloy

Limitation: The epoxy limits the upper useful temperature of this configuration to 378 K

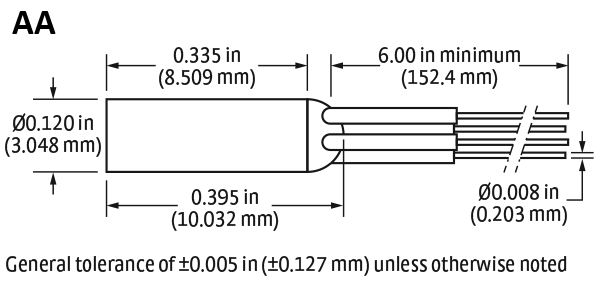

Adapter material: Gold-plated cylindrical copper canister, BeO header, Stycast® epoxy

Leads: Four 32 AWG × 150 mm (6 in) long

Lead material: Phosphor bronze insulated with polyimide

Mass: ≈395 mg

Limitation: The epoxy limits the upper useful temperature of this configuration to 400 K
