Lake Shore introduces new superconducting magnet power supply
07/18/2003

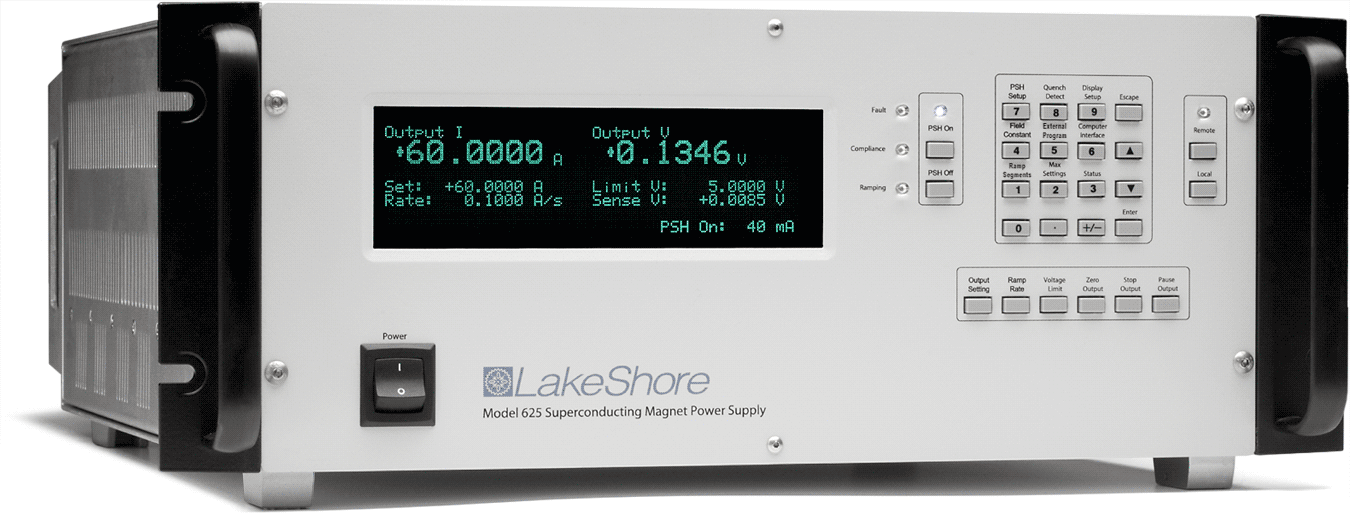

The Model 625 superconducting magnet power supply offers a linear, rather than a switch-mode output stage to minimize noise and ripple. The Model 625 can deliver up to 60 A at a compliance voltage of 5 V with the supply acting as either a source or a
sink (true four-quadrant operation). Two units can be paralleled for 120 A/5 V operation. The Model 625 incorporates a 20-bit D/A converter for internal current settings providing a resolution of 0.1 mA. The settings can be made through the keypad,
a computer interface, or external analog input. The internal current ramp offers ramp rates from 0.1 mA/s to 99.999 A/s (compliance limited). The integrated persistent switch heater output is programmable to supply from 10 to 125 mA. Other standard
features include IEEE-488 and RS-232 interfaces, analog monitor outputs, and protection during line loss or magnet quench.
For more information on the Model 625 superconducting magnet power supply, contact:
Lake Shore Cryotronics, Inc.,
575 McCorkle Boulevard, Westerville OH 43082
Tel: (614) 891-2244
Fax: (614) 818-1600
e-mail: marketing@lakeshore.com.
