MeasureLINK™ for the 240 Series

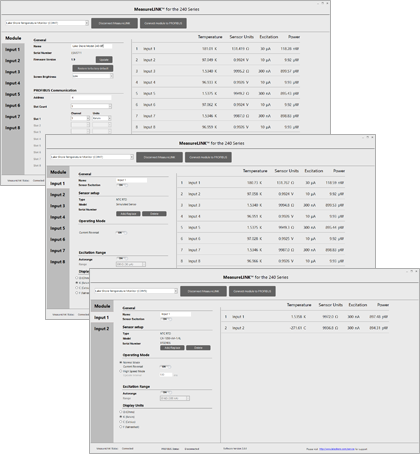

MeasureLINK™ provides the ability to configure, maintain and directly monitor Lake Shore 240 Series cryogenic temperature sensor input modules.
Please note: if you have installed version 2.0.0.1 or older of the 240 MeasureLINK software, you need to uninstall that older version in order to install this newest update.
Version: 2.1.0
Publisher: Lake Shore Cryotronics, Inc.
Supported operating systems: Windows 7 and newer
Supported instruments: Model 240-2P, 240-8P
If you need to install the program on a computer that is not connected to the internet, download this local version. Extract the files to a local directory and open Setup.exe.
Firmware update
To update your 240 Series firmware, download the latest firmware file and use the MeasureLINK software to install the update.
Download the version 2.4 file.
PLC configuration file
Download the GSD file.
Windows USB driver

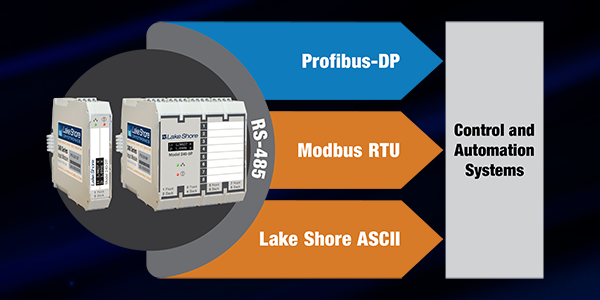

Lake Shore 240-2P and 240-8P modules now offer greater system integration flexibility with support for additional communication protocols over the built-in RS-485 interface. Alongside the existing PROFIBUS-DP protocol, users can now select Modbus RTU multidrop communication or Lake Shore ASCII point-to-point communication. These new options simplify integration with PLCs, industrial controllers, embedded PCs, SBCs, and a wide range of automation and control software platforms.
Firmware version 2.4 and later includes support for these communication modes and is installed on units shipped after August 31, 2026. Customers with earlier units can upgrade existing firmware in the field using the MeasureLINK 240 firmware updater.
