Packages and adapters for platinum RTDs allow the sensor to be soldered in place, screwed on, bolted down, inserted into a hole, or inserted through a pressure seal in the form of a thermowell. Appendix C: Sensor Packaging and Installation discusses techniques for correctly installing cryogenic temperature sensors. Special packaging is also available—consult Lake Shore for custom orders.
Additional information about Lake Shore sensors and packaging can be found in our Temperature Sensor Selection Guide.
Each sensor package or adapter has been rated for four attributes or characteristics. These ratings give a general idea of how a package will perform and aid in the early decision-making process but are not a substitute for detailed specifications.

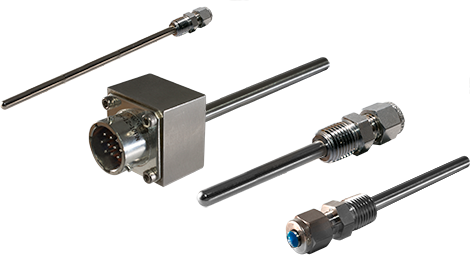

Some applications require more protection for your sensors (especially if they have to be immersed in liquid). Cryogenic temperature probes are great for those. Encased in a stainless steel thermowell fixture, the sensor can perform as designed, unaffected by high pressure and sealed to keep electrical components and wiring protected from fluids and other elements.
- Stainless steel-encased probes that provide high-reliability sensor performance in a thermowell
- Sealed to keep electrical components and wiring protected from fluids
- Ideal for temperature measurements in fluid containers and tanks
- Hermetic feedthrough at the end
- Also beneficial for extended sensor reach in narrow spaces
- Available in standard lengths up to 28 in (0.7 m) long
- Custom lengths and configurations are also available
- A flat aluminum block with a PT-103 mounted inside
- Can be mounted to any flat surface with a 6-32 or M3 screw (not included) and Inconel® Belleville washer (included)

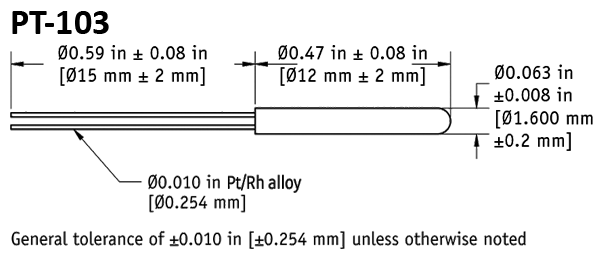

Packaging material, leads, and lead material: See PT-103
Adapter material: 6061 Al block (PT mounted to adapter using Cotronics Durabond® 950 Al-based adhesive)
Mass: 2.1 g
Limitation: The aluminum alloy limits the upper useful temperature of these configurations to 800 K
- A flat aluminum block with a PT-102 mounted inside
- Can be mounted to any flat surface with a 6-32 or M3 screw (not included) and Inconel® Belleville washer (included)
Packaging material, leads, and lead material: See PT-102
Adapter material: 6061 Al block (PT mounted to adapter using Cotronics Durabond® 950 Al-based adhesive)
Mass: 3.8 g
Limitation: The aluminum alloy limits the upper useful temperature of these configurations to 800 K
- Wire-wound thermometer normally used as a secondary standard
- Should not be subjected to any unnecessary shock or rough mechanical treatment

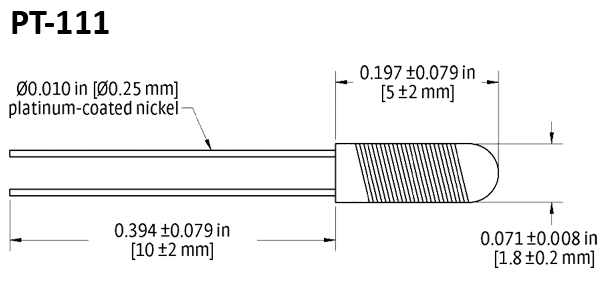

Packaging material: One platinum band wound onto a glass tube which is protected from the environment by a layer of glaze, platinum-coated nickel lead wires

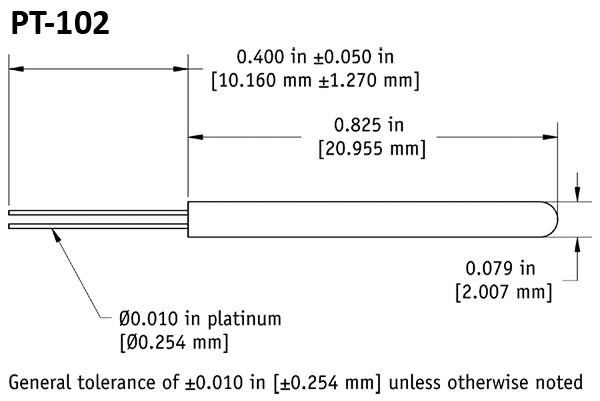

Leads: Two 0.010-inch diameter: 10.160 ±1.270 mm (0.400 ±0.050 in) long
Lead material: Platinum-coated nickel
Mass: 250 mg
- Wire-wound thermometer normally used as a secondary standard
- They should not be subjected to any unnecessary shock or rough mechanical treatment
Packaging material: Platinum winding fully supported by a high temperature alumina powder inside a ceramic tube, platinum/rhodium lead wires
Leads: Two 0.010-inch diameter: 15.240 ±1.270 mm (0.600 ±0.050 in) long
Lead material: Platinum 95%, rhodium 5% alloy
Mass: 120 mg
- Wire-wound thermometer normally used as a secondary standard
- They should not be subjected to any unnecessary shock or rough mechanical treatment
Packaging material: Platinum winding partially supported by a high temperature alumina powder inside a ceramic tube, platinum lead wires
Leads: Two 0.010-inch diameter: 10.160 ±1.270 mm (0.400 ±0.050 in) long
Lead material: Platinum
Mass: 250 mg
