2Dex™ Hall Sensor Specifications

Specifications are preliminary and may change prior to full release of the product

Electrical performance

Drive current

Nominal: 1 mA

Maximum for accurate measurements: 5 mA*

Maximum to avoid possible sensor damage: 10 mA*
*This value may vary depending on the thermal environment around the sensor and the temperature compensation approach.

Hall voltage

Sensitivity (Hall voltage vs field value)2X-250 standard performance2X-251 high performance
Nominal sensitivity (S) at 1 mA drive current51.5 ± 1 mV/T51.5 ± 0.5 mV/T
Drive current normalized sensitivity (SA)51.5 ± 1 V/T/A51.5 ± 0.5 V/T/A
Temperature coefficient of sensitivity (-20 to 80 °C)0.03%/°C0.03%/°C
Maximum linearity error (to 1 T)±0.75%±0.25%
Maximum linearity error (to 3 T)±1%±0.5%


Offset voltage (output voltage at zero field)2X-250 standard performance2X-251 high performance
Zero field offset at 1 mA drive current±100 μV±25 μV
Drive current normalized zero field offset ±100 mV/A±25 mV/A
Effective zero field offset ±2 mT (20 G)±0.5 mT (5 G)


Resistance

Sensor resistance at 23 °C: 800 ± 100 Ω

Typical temperature coefficient of resistance: 1.1%/°C

Environment

Temperature

 Minimum temperatureMaximum temperature
2X-250-FA Flat axial (coming soon)-272 °C (1 K)125 °C (402 K)
2X-250-FT Flat transverse (coming soon)-272 °C (1 K)125 °C (402 K)
2X-250-AI Axial insert (coming soon)-196 °C (77 K)125 °C (402 K)
2X-250-3D 3-axis (coming soon)0 °C (273 K)100 °C (373 K)
2X-250-SH Extreme environment (coming soon)-272 °C (1 K)200 °C (473 K)

Vacuum

PackageRating
FA, FT, AI, 3DHigh vacuum (down to 10-4 Pa)
SHUltra-high vacuum (down to 10-10 Pa)

2Dex™ example circuit (click to expand)

2Dex™ example circuit

Physical

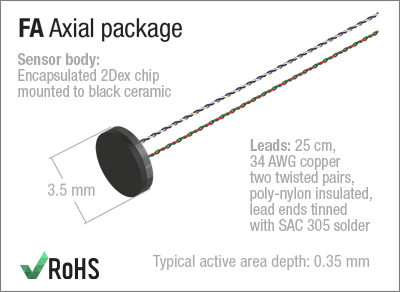

FA package specifications

FA active area (click to expand)

2Dex FA active area

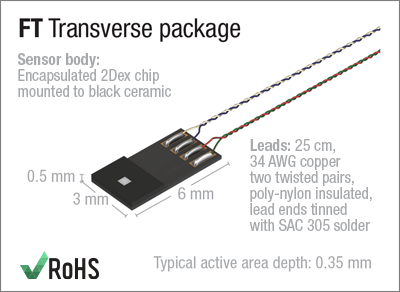

FT package specifications

FT active area (click to expand)

2Dex FT active area

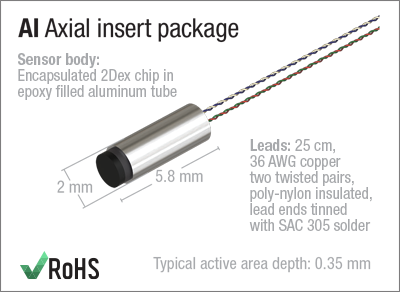

AI package specifications

AI active area (click to expand)

2Dex AI active areas

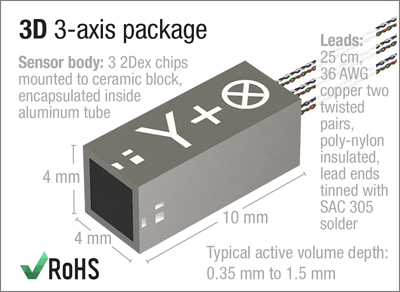

3D package specifications

3D active areas (click to expand)

2Dex 3D active areas

Connections

Sensor wire colorSignal
RedI+
GreenI-
BlueV+
Clear (copper)V-
